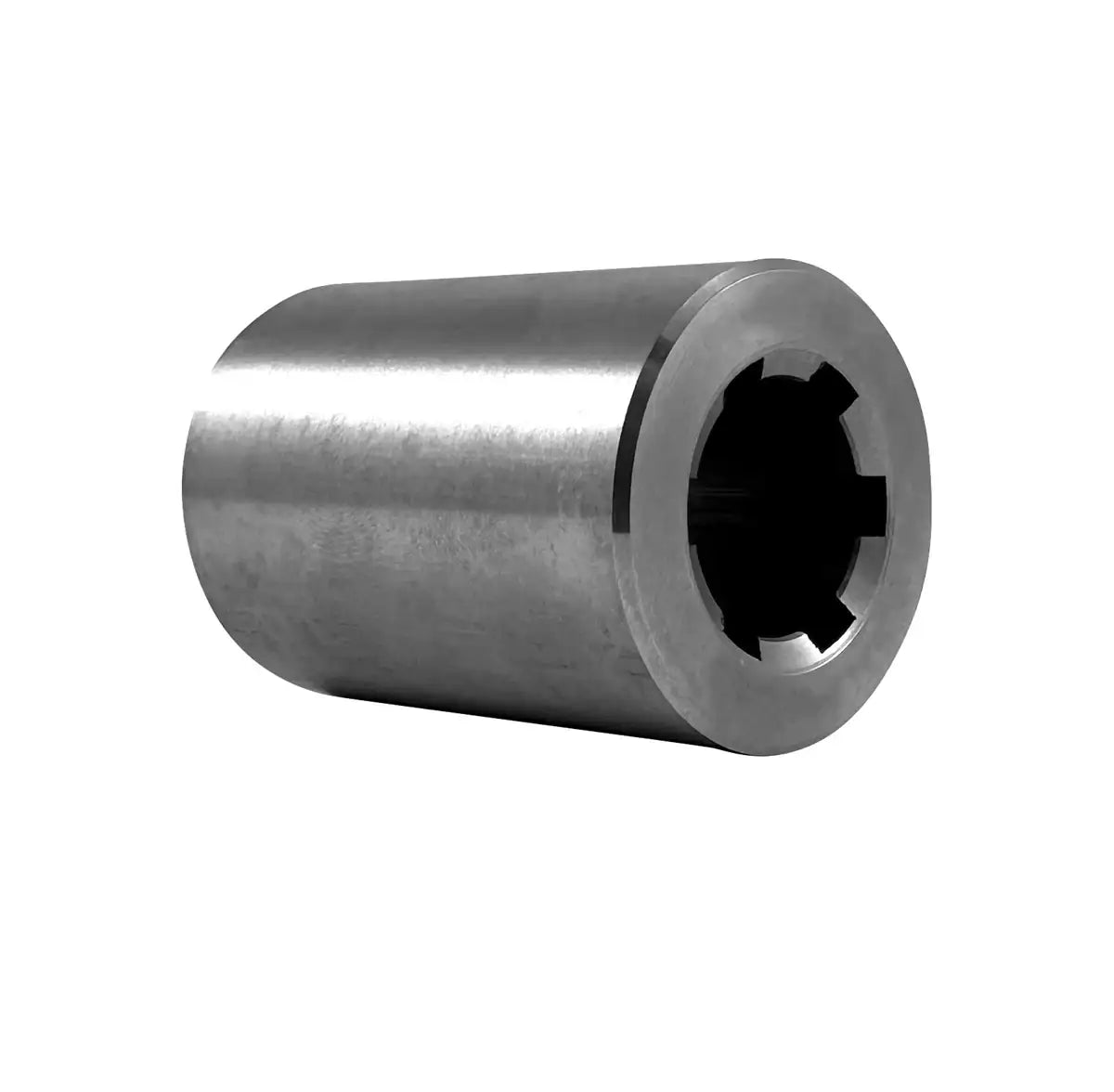

8 Spline Hub for 48mm Splined Shaft - Stainless Steel
8 Spline Hub for 48mm Splined Shaft - Stainless Steel
Note:
Custom Cut to Length Chain Also Available
Product Code: 64899311-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Our premium 48mm spline hub, with 8 splines, is precision-machined from 303-grade stainless steel, making it suitable for washdown, food-grade, and abrasive environments. Crafted to DIN ISO 14 standards, this 8-spline hub for 48mm splined shafts ensures superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts together or providing a mounting surface. For more information or to request a quote on our high-quality stainless steel 48mm splined shaft, please contact our customer service team, and we will be happy to assist you!
48mm Splined Shaft Hub Dimensions
- Part Number: 64899311
- Material: 303 Stainless
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A):80 mm
- Length: 70mm
- Weight: 1.88KG
Feature
- Precision Made from Stainless Steel
- Made for 48mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64899311
- Material: 303 Stainless
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A):80 mm
- Length: 70mm
- Weight: 1.88KG
