Clamp Collar For 28mm Splined Shaft With 6 Splines - Brass
Clamp Collar For 28mm Splined Shaft With 6 Splines - Brass
Note:
Custom Cut to Length Chain Also Available
Product Code: 64865300-CLAMP-COLLAR
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

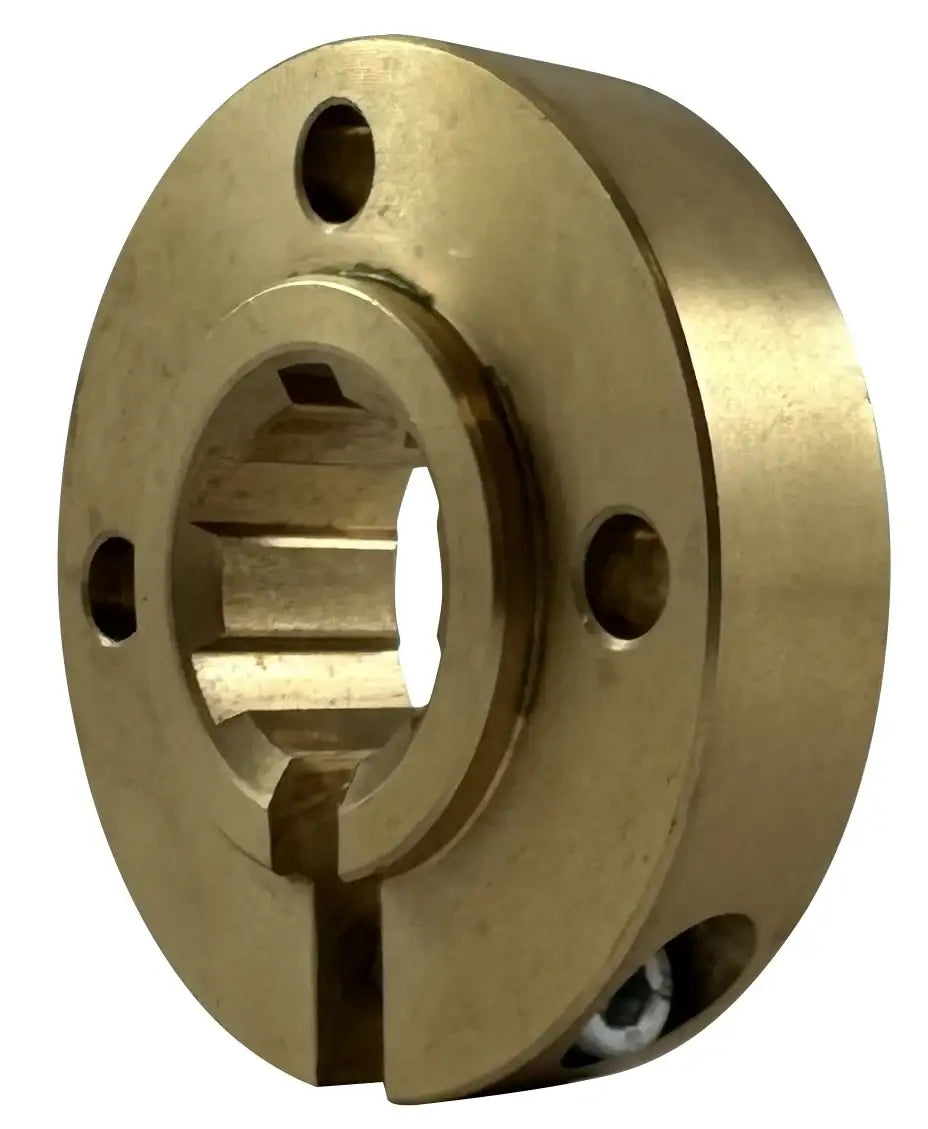

Our precision-engineered clamp collar for a 28mm splined shaft with 6 splines is made from high-grade red brass. It features four pre-drilled holes to perfectly align with a flanged splined hub. This mechanical device is used to secure or position components on a splined shaft, with internal splines that match the shaft's for a secure and accurate fit. This design ensures the collar can effectively transmit torque and resist rotational forces without slipping. For further information or to request a quote on our premium brass clamp collar for a 28mm splined shaft with 6 splines, please reach out to our customer service team, who are ready to assist you!
28mm Splined Clamp Collar Dimensions
- Part Number: 64865300
- Material: Red Brass
- Profile Description: KN 23 x 28
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (d): 23mm
- Dimension (L): 15mm
- Dimension (K): 3mm
- Dimension (T): 6.8mm
- Dimension (S): M6
- Weight: 0.30KG
Feature
- Precision Made from Red Brass
- Made for 28mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Direct Mount to Splined Hub With Flange
- Part Number: 64865300
- Material: Red Brass
- Profile Description: KN 23 x 28
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (d): 23mm
- Dimension (L): 15mm
- Dimension (K): 3mm
- Dimension (T): 6.8mm
- Dimension (S): M6
- Weight: 0.30KG
