Power Transmission > Miscellaneous Items > Splined Hubs With Flange

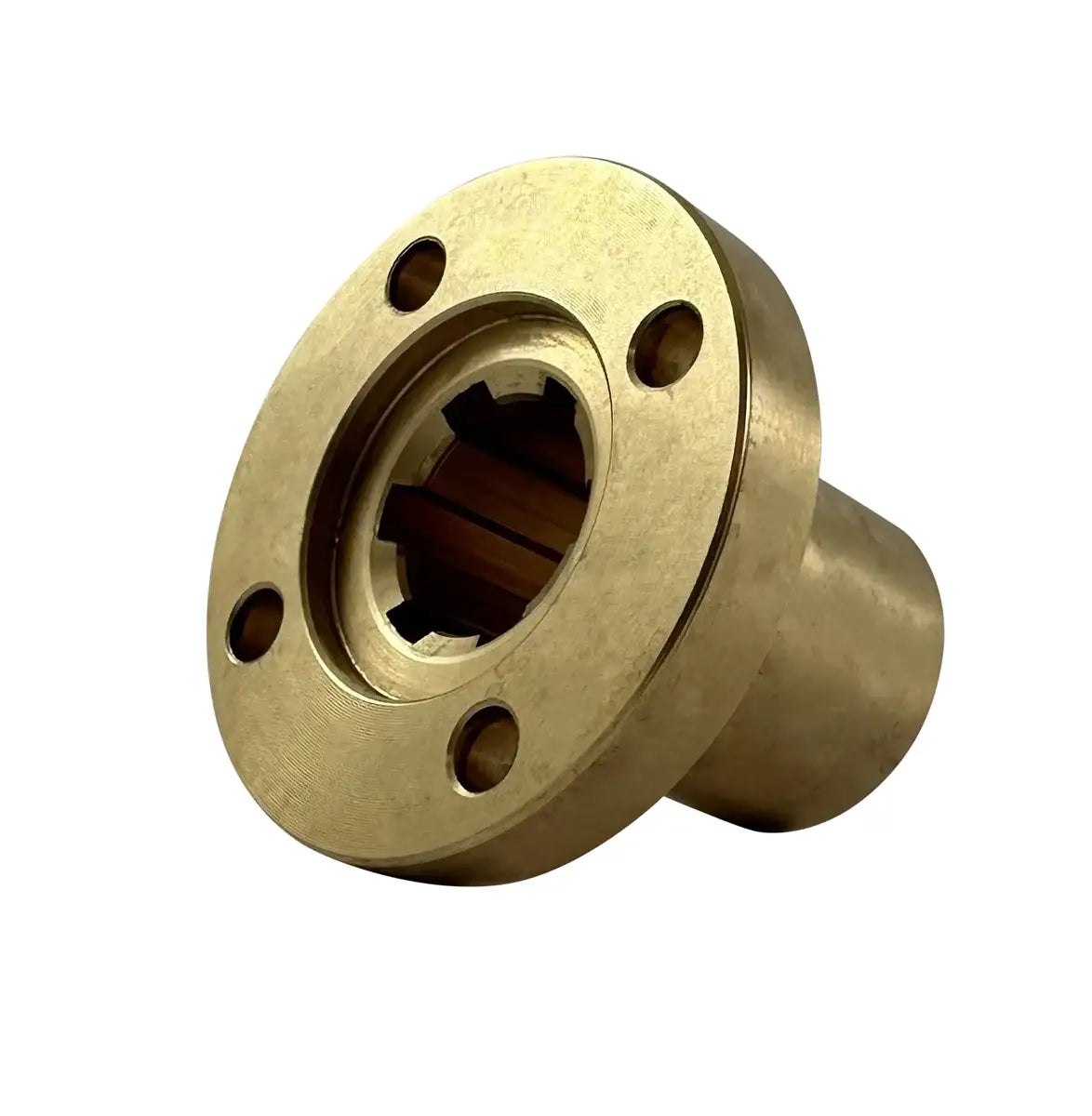

Splined Hub With Flange for 42mm Shaft With 8 Splines - Brass Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64856200-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 42mm Shaft With 8 Splines - Brass Material Features
Splined Hub With Flange for 42mm Shaft With 8 Splines - Brass Material Specifications
Enhance your setup with our high-quality splined hub featuring a flange, precisely crafted from durable brass for a 42mm shaft with 8 splines. Adhering to ISO DIN 14 standards, this hub ensures smooth interchangeability and precise torque transmission for various applications. Designed for a 42mm diameter shaft with 8 splines, it offers easy installation and reliable, long-lasting performance. We also provide splined clamp collars with four pre-drilled holes to accompany this hub. For more information or to request a quote on our superior splined hub with flange for a 42mm shaft with 8 splines, please contact our attentive customer service team, who are eager to assist you!
42mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: Brass
- Part #: 64856200
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.07 KG
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: Brass
- Part #: 64856200
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 1.07 KG
