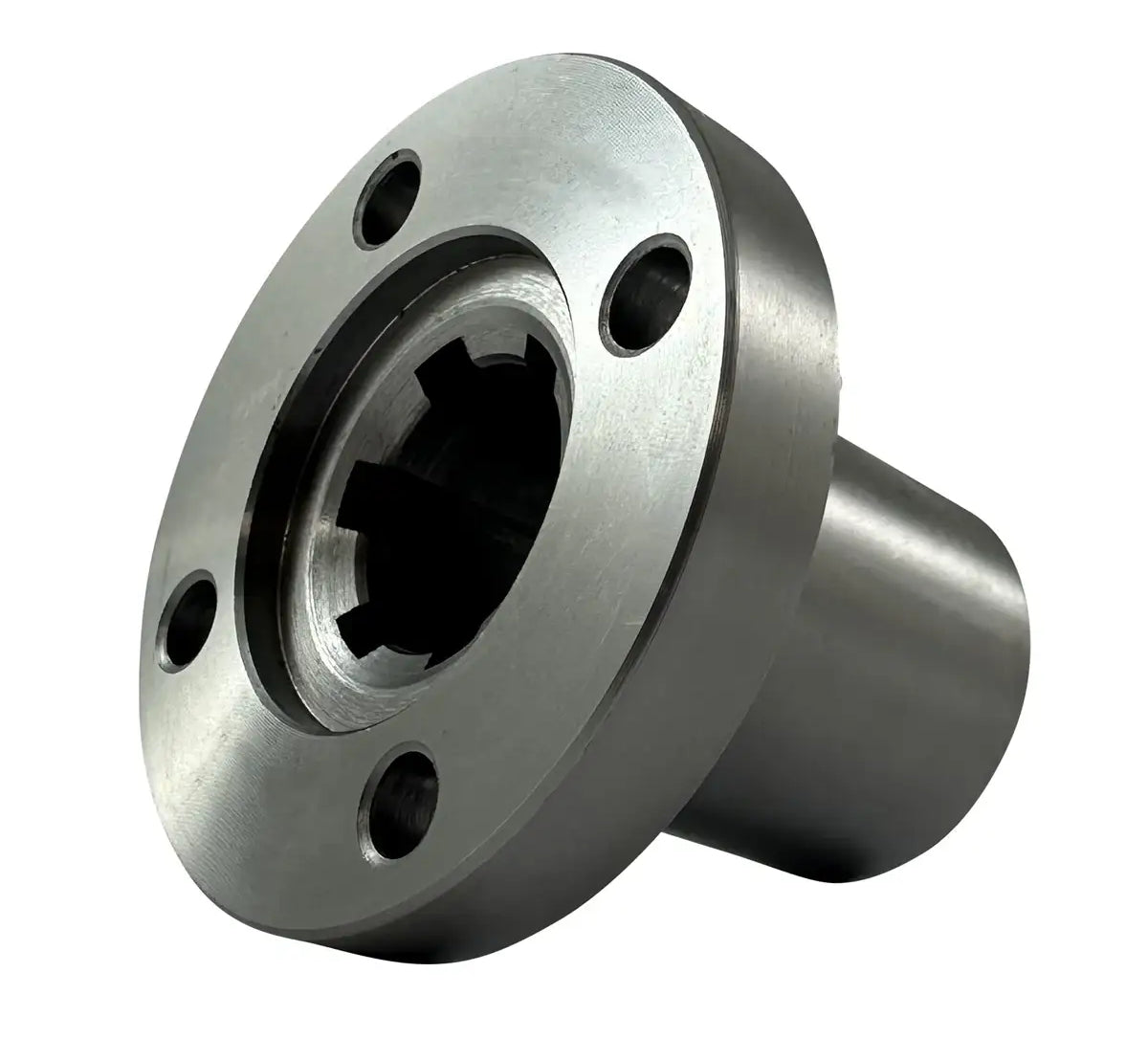

Splined Hub With Flange for 25mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850600-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 25mm Shaft With 6 Splines - C45 Material Features
Splined Hub With Flange for 25mm Shaft With 6 Splines - C45 Material Specifications
This high-grade splined hub with a flange is suitable for a 25mm shaft with 6 splines and is constructed from strong C45 steel. It meets ISO DIN 14 standards, ensuring easy interchangeability. Flanged splined hubs are vital for accurate torque transmission in various applications. Designed for a 25mm diameter shaft with 6 splines, this hub is easy to install and provides durable, reliable performance. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For more details or to request a quote on our quality splined hub with flange for a 25mm shaft with 6 splines, please contact our customer service team, who are eager to assist you!
25mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: C45
- Part #: 64850600
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.34 KG
- Made for Shaft Diameter: 25mm
- Profile Description: KN21x25
- Material: C45
- Part #: 64850600
- Dimension (A): 62mm
- Dimension (B): 48mm
- Dimension (B1): 6.6mm
- Dimension (C): 35mm
- Dimension (F): 34mm
- Dimension (d): 21mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 50mm
- Weight: 0.34 KG
