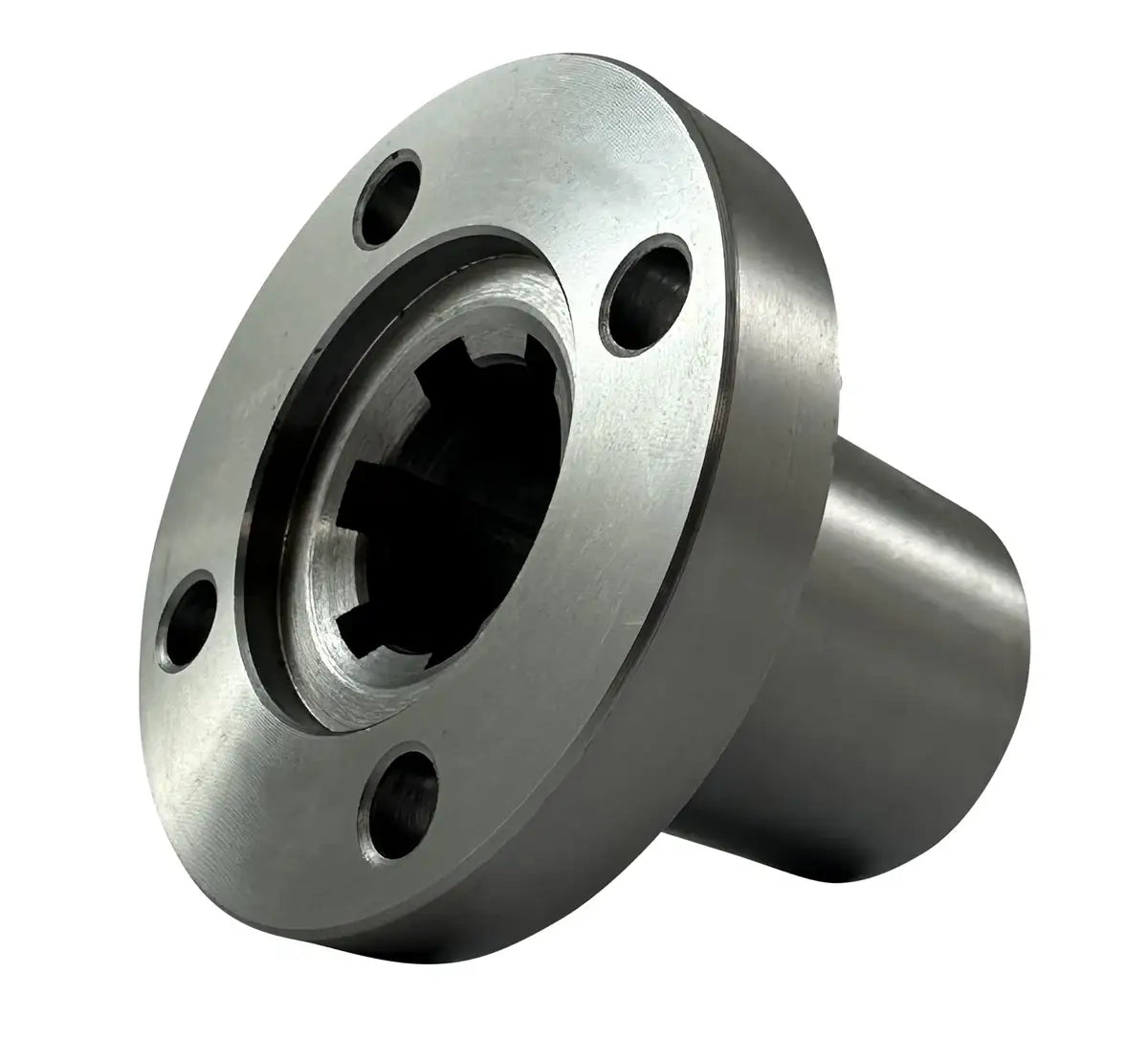

Splined Hub With Flange for 28mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850300-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 28mm Shaft With 6 Splines - C45 Material Features
Splined Hub With Flange for 28mm Shaft With 6 Splines - C45 Material Specifications
This top-quality splined hub with a flange is crafted for a 28mm shaft with 6 splines, using durable C45 steel. It complies with ISO DIN 14 standards for seamless interchangeability. Flanged splined hubs are crucial for precise torque transmission in various applications. Specifically designed for a 28mm diameter shaft with 6 splines, this hub is straightforward to install and ensures long-lasting, reliable performance. We also provide splined clamp collars with four pre-drilled holes to accompany this hub. For further details or to request a quote on our premium splined hub with flange for a 28mm shaft with 6 splines, please contact our customer service team, who will be happy to assist!
28mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 28mm
- Profile Description: KN23x28
- Material: C45
- Part #: 64850300
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (F): 36mm
- Dimension (d): 23mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 55mm
- Weight: 0.41 KG
- Made for Shaft Diameter: 28mm
- Profile Description: KN23x28
- Material: C45
- Part #: 64850300
- Dimension (A): 64mm
- Dimension (B): 50mm
- Dimension (B1): 6.6mm
- Dimension (C): 36mm
- Dimension (F): 36mm
- Dimension (d): 23mm
- Dimension (E): 10mm
- Dimension (h): 3.5mm
- Dimension (L): 55mm
- Weight: 0.41 KG
