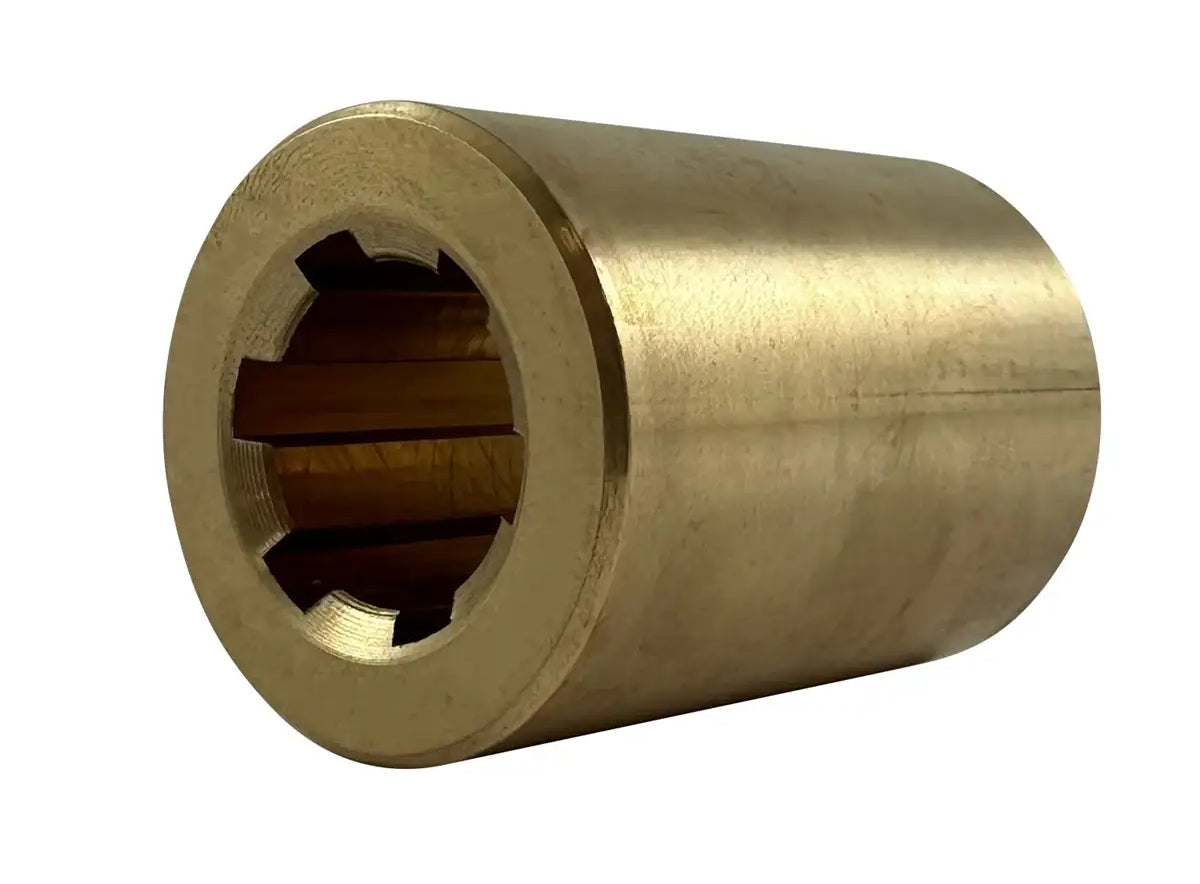

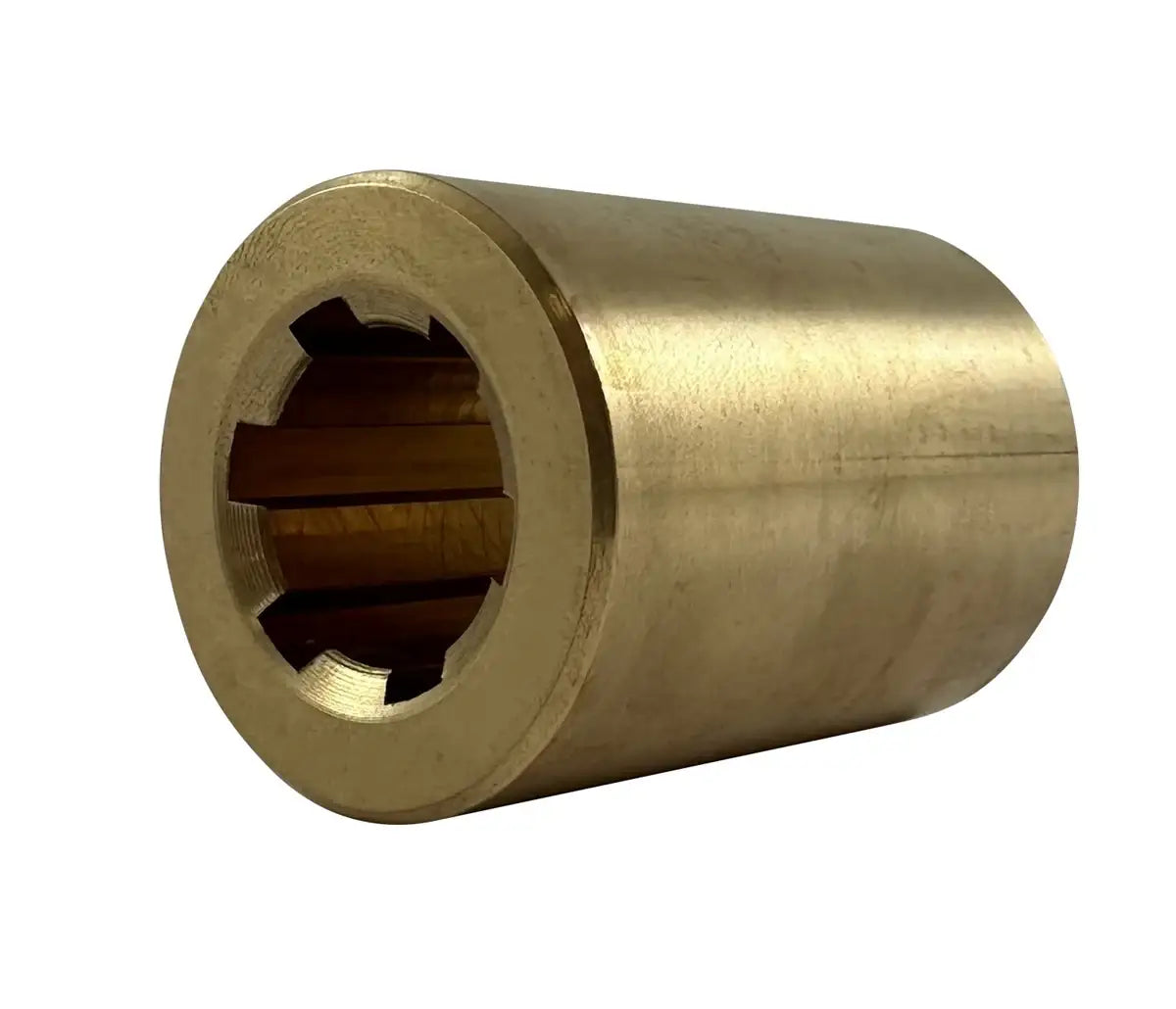

8 Spline Hub for 48mm Splined Shaft - Brass
8 Spline Hub for 48mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
Product Code: 64836000-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Our premium 48mm spline hub, equipped with 8 splines, is expertly machined from high-quality red brass, ensuring superior resistance to corrosion and a wide operating temperature range. Designed to DIN ISO 14 standards, this 8-spline hub for 48mm splined shafts guarantees excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our premium brass 48mm splined shaft, please contact our customer service team, and we will be happy to assist you!
48mm Splined Shaft Hub Dimensions
- Part Number: 64836000
- Material: Red Brass
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 65mm
- Length: 70mm
- Weight: 1.10KG
Feature
- Precision Made from Red Brass
- Made for 48mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64836000
- Material: Red Brass
- Profile Description: 42 X 48
- Number of Keyways: 8
- Dimension (D): 48mm
- Dimension (d): 42mm
- Dimension (b): 8mm
- Dimension (A): 65mm
- Length: 70mm
- Weight: 1.10KG
