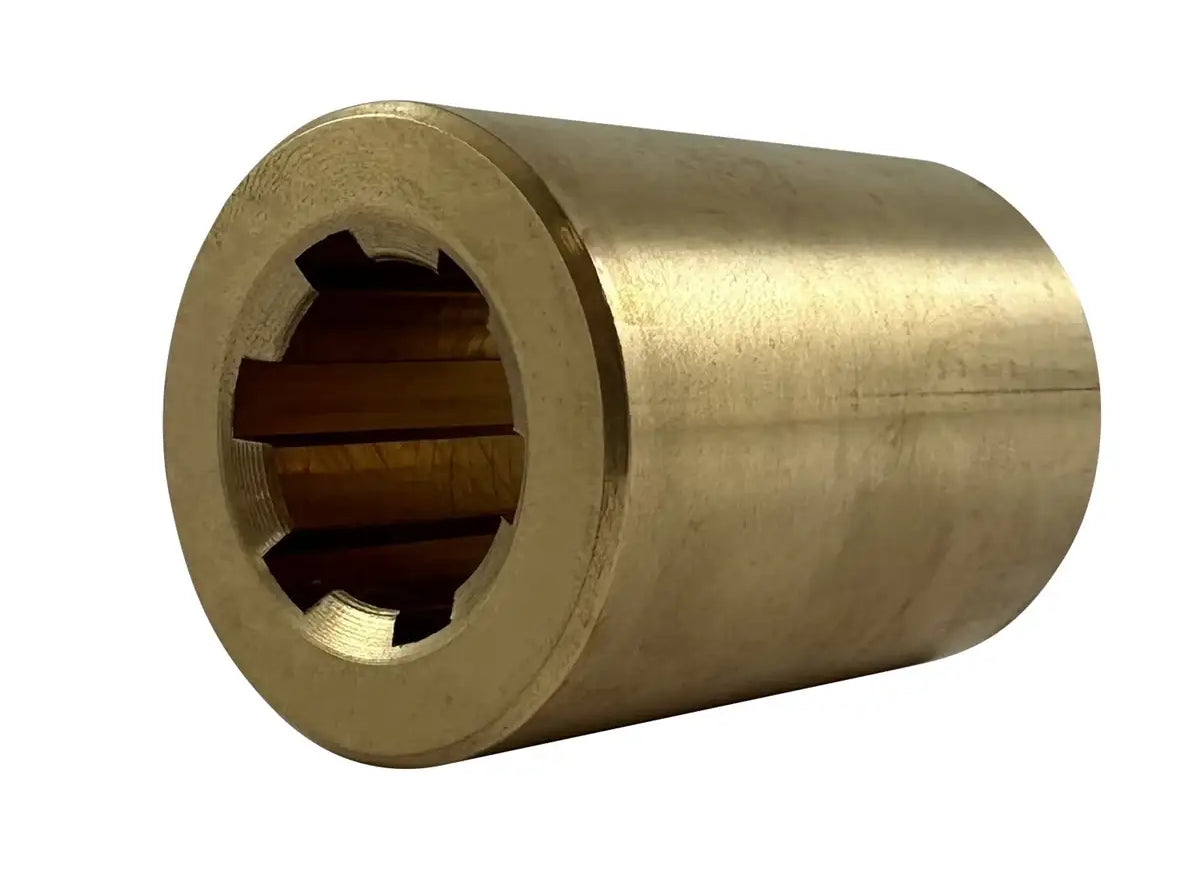

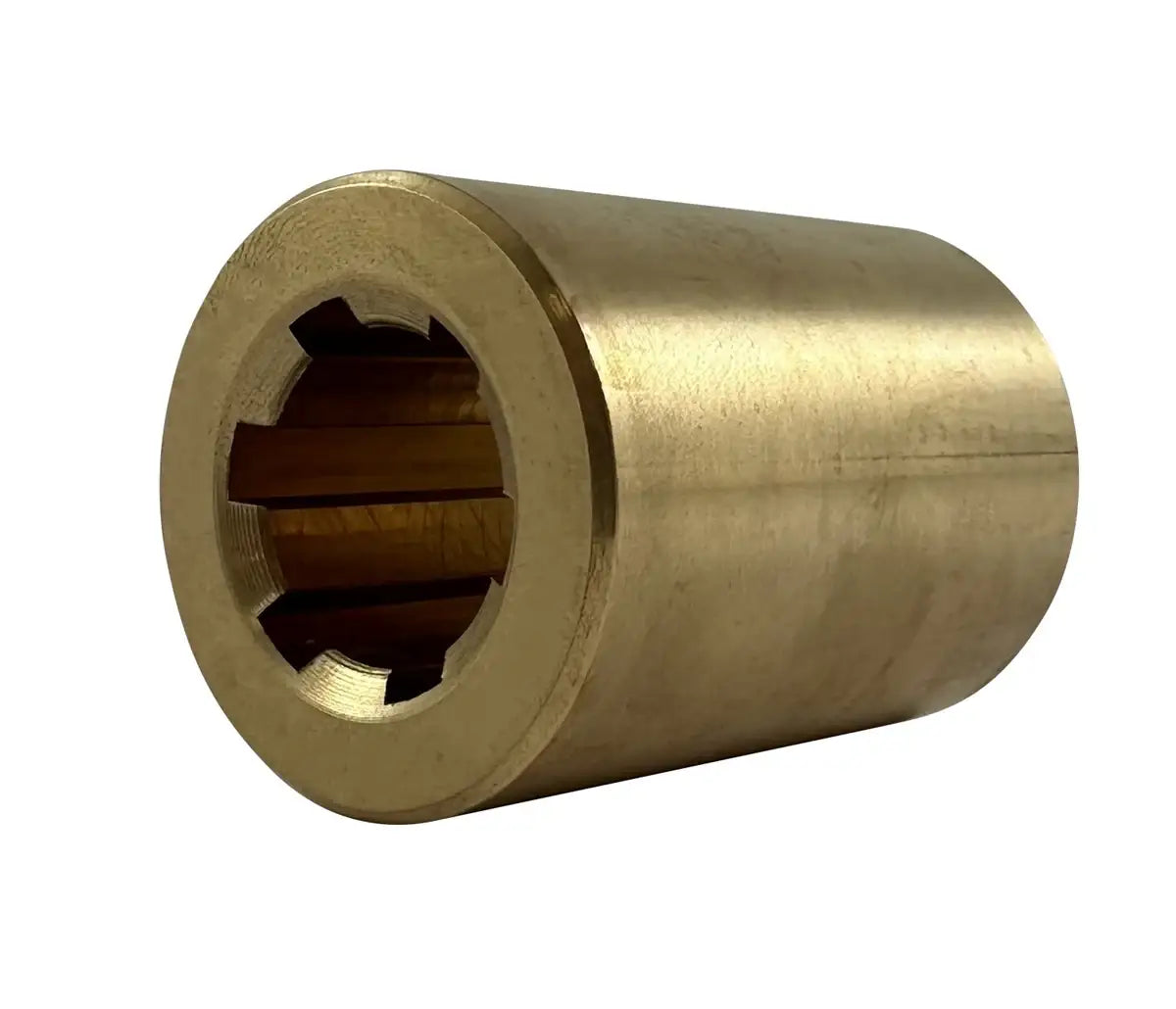

6 Spline Hub for 25mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
SKU: 64835600-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6 Spline Hub for 25mm Splined Shaft - Brass Features
6 Spline Hub for 25mm Splined Shaft - Brass Specifications
Our high-quality 25mm spline hub, with 6 splines, is precision-machined from premium red brass, providing excellent resistance to corrosion and a wide operating temperature range. Designed to DIN ISO 14 standards, this 6-spline hub for 25mm splined shafts ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts or providing a mounting surface. For more details or to request a quote on our premium brass 25mm splined shaft, please contact our customer service team, and we will be pleased to assist you!
25mm Splined Shaft Hub Dimensions
- Part Number: 64835600
- Material: Red Brass
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.42KG
- Part Number: 64835600
- Material: Red Brass
- Profile Description: 21 X 25
- Number of Keyways: 6
- Dimension (D): 25mm
- Dimension (d): 21mm
- Dimension (b): 5mm
- Dimension (A): 40mm
- Length: 55mm
- Weight: 0.42KG
