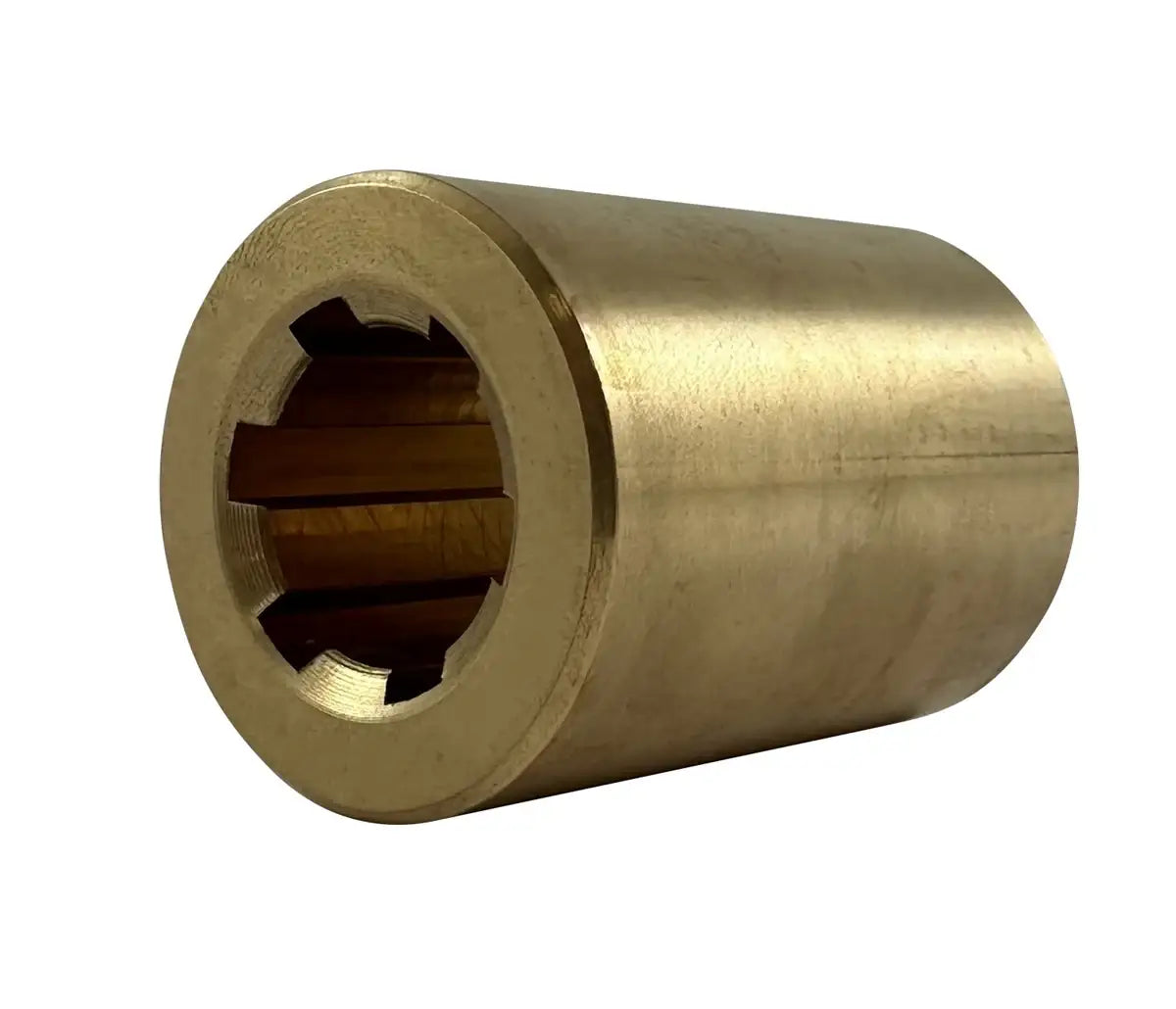

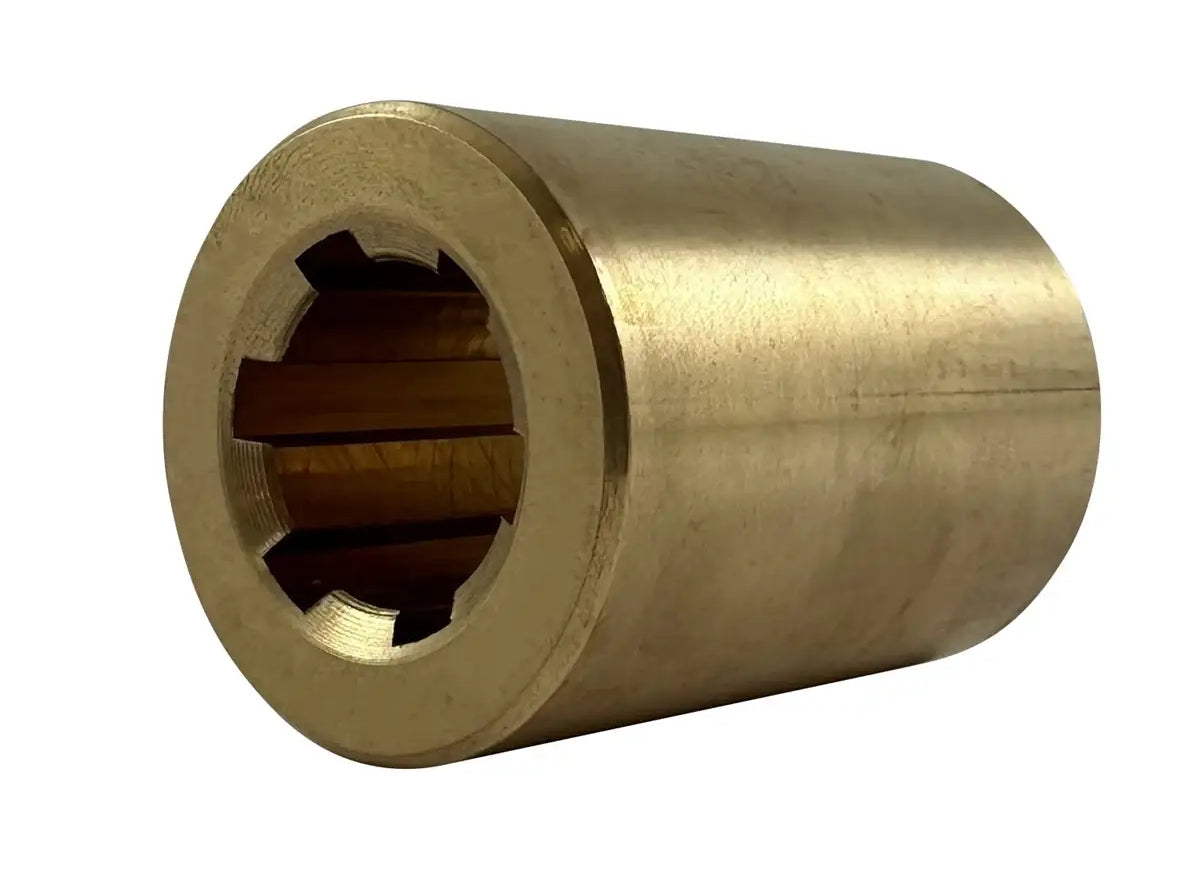

6 Spline Hub for 16mm Splined Shaft - Brass
6 Spline Hub for 16mm Splined Shaft - Brass
Note:
Custom Cut to Length Chain Also Available
Product Code: 64835400-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
Our top-tier 16mm spline hub, featuring 6 splines, is precision-machined from premium red brass, offering excellent resistance to corrosion and a broad operating temperature range. This 6-spline hub for 16mm splined shafts is crafted to DIN ISO 14 standards, ensuring superb fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts together or providing a mounting surface. For more information or to request a quote on our premium brass 16mm splined shaft, please contact our customer service team, and we will be happy to assist you!
16mm Splined Shaft Hub Dimensions
- Part Number: 64835400
- Material: Red Brass
- Profile Description: KN 13 X 16
- Number of Keyways: 6
- Dimension (D): 16mm
- Dimension (d): 13mm
- Dimension (b): 3.5mm
- Dimension (A): 28mm
- Length: 45mm
- Weight: 0.18KG
Feature
- Precision Made from Red Brass
- Made for 16mm Splined Shafting
- Conforms to DIN ISO 14 Standard
- Part Number: 64835400
- Material: Red Brass
- Profile Description: KN 13 X 16
- Number of Keyways: 6
- Dimension (D): 16mm
- Dimension (d): 13mm
- Dimension (b): 3.5mm
- Dimension (A): 28mm
- Length: 45mm
- Weight: 0.18KG
