63 Stainless Steel Chain | 63 SS Chain - Side Bow Base Chain
SKU: 63SS-SIDE-BOW-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
63 Stainless Steel Chain | 63 SS Chain - Side Bow Base Chain Description/Features
63 Stainless Steel Chain | 63 SS Chain - Side Bow Base Chain Specifications
#63 Stainless steel chain is also commonly known as a 63 stainless steel side-flex chain or 63 stainless steel side-bow chain and is utilized as a "base chain" for side flexing table top chain. What separates our chain from others is the premium quality stainless steel utilized, ISO 603 manufacturing standards, and high-precision performance parts from the sidebars to the rollers. Common applications for this chain include bulk handling, electronics, textile, and feeding/ automation technology. This chain is supplied in 10 boxes including a master link and will run on standard ANSI 60 roller chain sprockets. For more information or to get a quote please contact us and we will be happy to assist you.

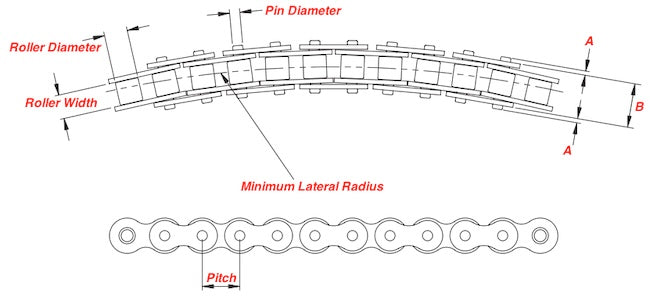

63 Stainless Steel Side Bow Chain Dimensions
- Pitch: 3/4"
- Roller Width: 1/2"
- Roller Diameter: 0.469"
- Pin Diameter: 0.200"
- Link Plate Thickness: 0.094"
- A: 0.120"
- B: 0.900"
- Minimum Lateral Radius: 22"
- Weight Per Foot: 0.940"
- Pitch: 3/4"
- Roller Width: 1/2"
- Roller Diameter: 0.469"
- Pin Diameter: 0.200"
- Link Plate Thickness: 0.094"
- A: 0.120"
- B: 0.900"
- Minimum Lateral Radius: 22"
- Weight Per Foot: 0.940"
