6263 Bridge Conveyor Chain | 6263 Chain
Note:

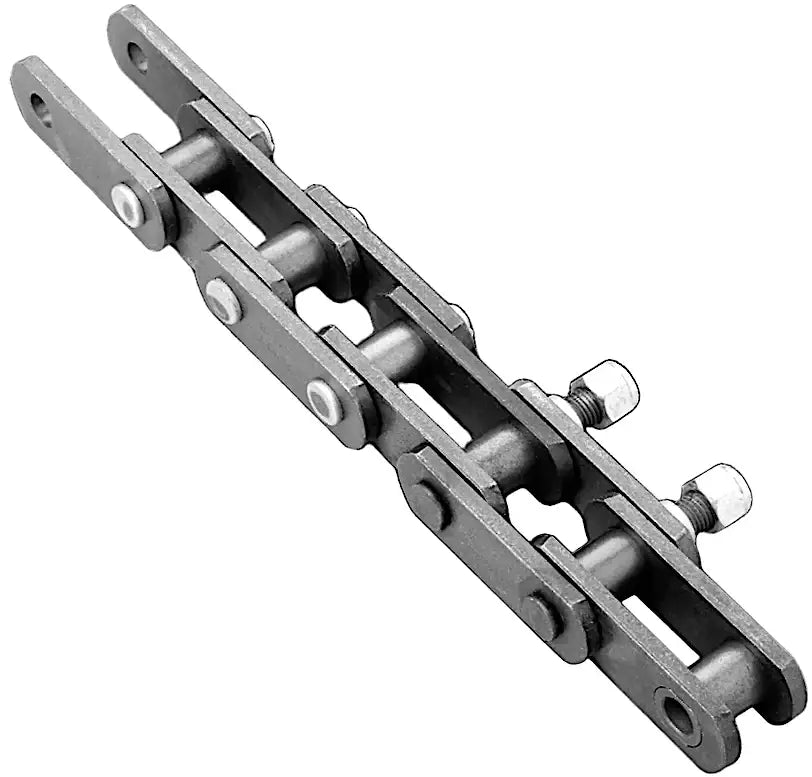

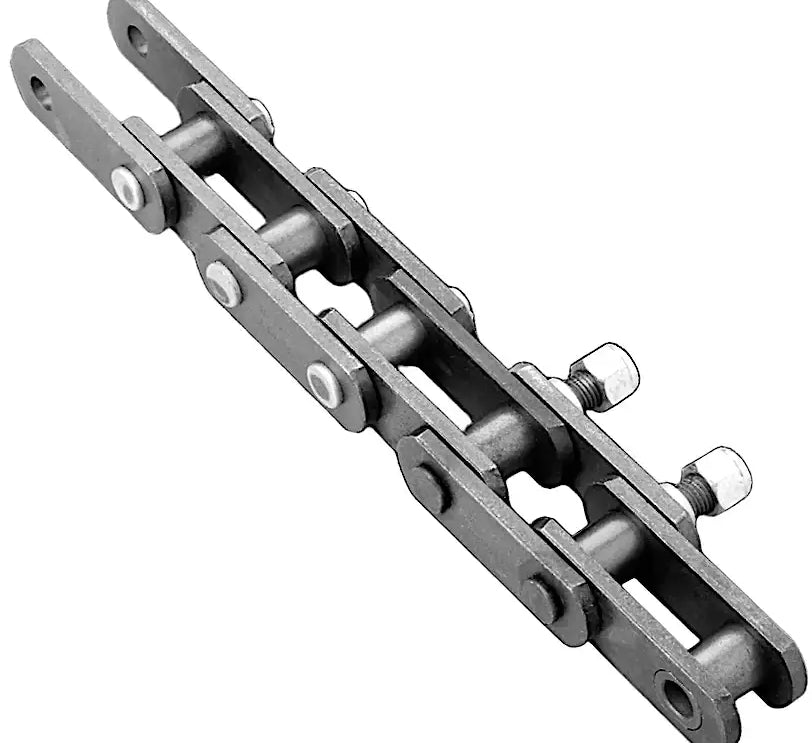

Chain Image Is of 6525PB, Refer To Drawing Below For Detailed Specs
SKU: 6263-BRIDGE-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
6263 Bridge Conveyor Chain | 6263 Chain Description/Features
6263 Bridge Conveyor Chain | 6263 Chain Specifications
6263 bridge conveyor chain is a high-strength engineer-class mining chain utilized specifically in bridge conveying applications. Our precision bridge conveyor chains showcase superior performance, reliability, and strength. Manufactured from high-grade steel grades, with specific heat-tret processes done to each component, this 6263 chain is built to operate in some of the most demanding applications in the world. Additionally, our 6263 chain directly interchanges with other brands and manufacturers. Besides the 6263 chain, we also offer 6263 sprockets! For additional information or to get a quote on the 6263 chain, contact our customer service team, and we will be happy to assist you!
6263 chain dimensions
- Chain size: 6263
- Dimension (P): 2.000"
- Dimension (B): 1.500"
- Dimension (C): 1.000"
- Dimension (D): 1.750"
- Dimension (E): 0.313"
- Dimension (F): 0.313"
- Dimension (G): 0.625"
- Dimension (H): 3.188"
- Average Ultimate Strength: 60,500 LBS
- Rated Working Load: 4,600 LBS
- Weight: 8.8 LBS/ FT
- Chain size: 6263
- Dimension (P): 2.000"
- Dimension (B): 1.500"
- Dimension (C): 1.000"
- Dimension (D): 1.750"
- Dimension (E): 0.313"
- Dimension (F): 0.313"
- Dimension (G): 0.625"
- Dimension (H): 3.188"
- Average Ultimate Strength: 60,500 LBS
- Rated Working Load: 4,600 LBS
- Weight: 8.8 LBS/ FT
