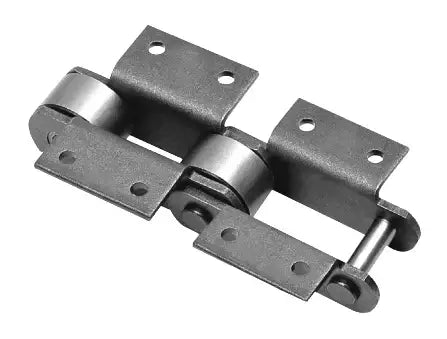

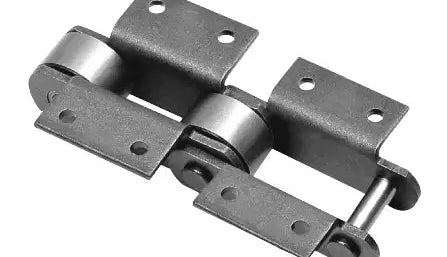

625R K-2 Attachment

Name: 625R K-2 Attachment
Brand: USA ROLLER CHAIN
SKU: 625R-K-2-ATTACHMENT
Availability: InStock

SKU: 625R-K-2-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

625R K-2 Attachment Description/Features

625R K-2 Attachment Specifications

This 625R K-2 attachment is a premium high-strength attachment that is manufactured specifically for 625R chain and can be assembled in any configuration needed. To get a quote for 625R chain with K-2 attachments or for more information please contact us and we will be happy to assist you!

Dimensions:

Attachment #: 625R-K-2
Dimension (A): 2.19"
Dimension (B): 2.00"
Dimension (C): 2.13"
Dimension (E): 4.63"
Dimension (F): 2.91"
Dimension (K): 0.38"
Dimension (L): 2.00"
Dimension (T): 0.25"
Weight: 13.9 LBS/ FT
