60BTB54 sprocket taper bushed 60BTB54 sprocket

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #60 Roller Chain Sprockets > #60 BTB Type Sprockets

Premium 60BTB54 Sprocket

Note: Custom Cut to Length Chain Also Available
$210.99
SKU: 60BTB54-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714722234735" , "metafield_value":""}]
Premium 60BTB54 Sprocket Features
Premium 60BTB54 Sprocket Specifications

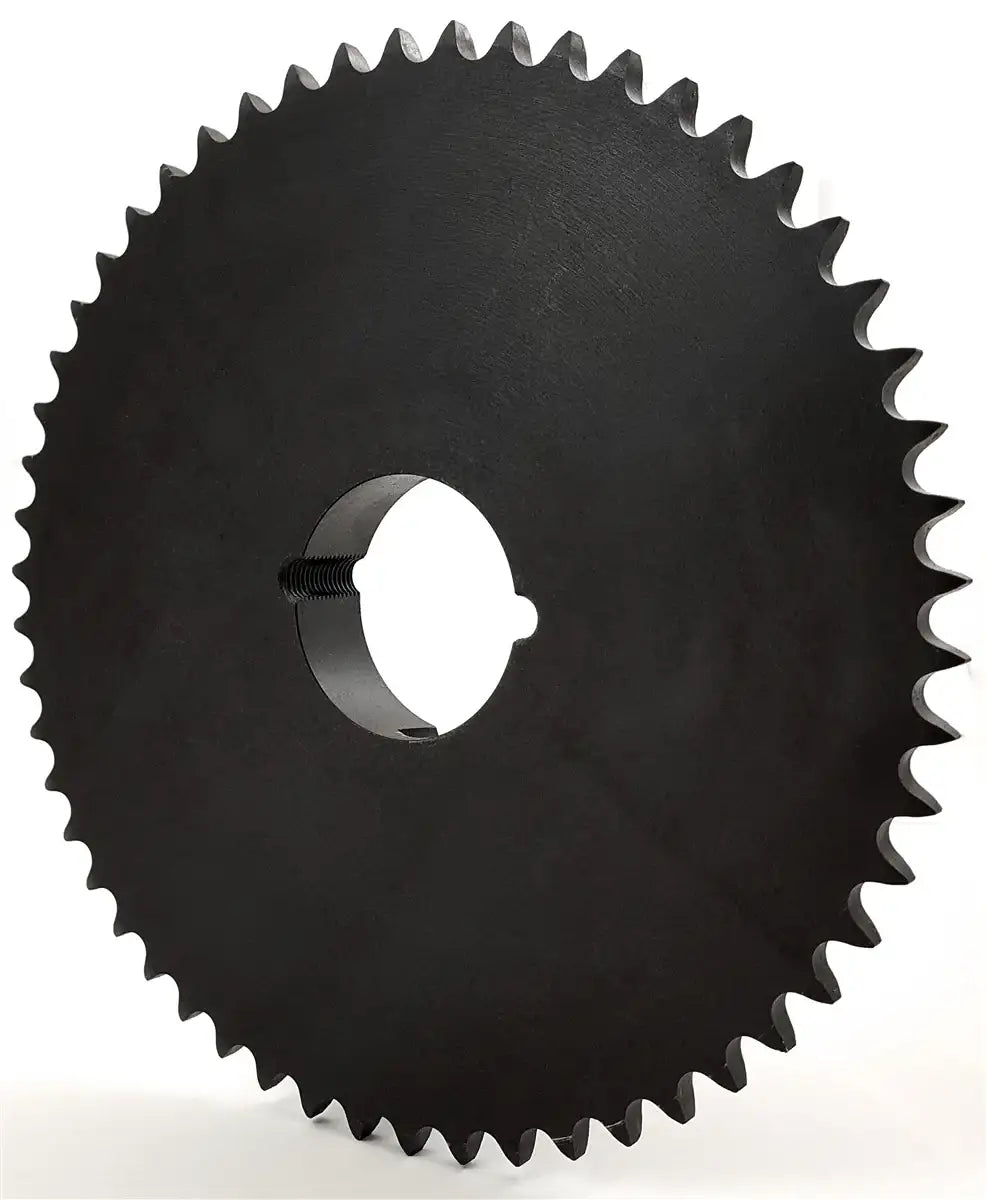

This 60BTB54 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a 2517 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and early rust build up. 60BTB54 sprockets are manufactured to accept a 2517 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

Dimensions:
Premium 60BTB54 Sprocket
  • Sprocket Size: 60BTB54
  • Tooth Count: 54
  • Bushing Size: 2517
  • Outside Diameter: 13.327"
  • Pitch Diameter: 12.899"
  • Sprocket Type: B
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-1/4"
  • Bushing Weight: 3.5 LBS
  • Sprocket Weight: 17.1 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 60BTB54
  • Tooth Count: 54
  • Bushing Size: 2517
  • Outside Diameter: 13.327"
  • Pitch Diameter: 12.899"
  • Sprocket Type: B
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-1/4"
  • Bushing Weight: 3.5 LBS
  • Sprocket Weight: 17.1 LBS
