Premium 60SF72 Sprocket
Note:
Custom Cut to Length Chain Also Available
$420.99
SKU: 60SF72-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium 60SF72 Sprocket Features
Premium 60SF72 Sprocket Specifications

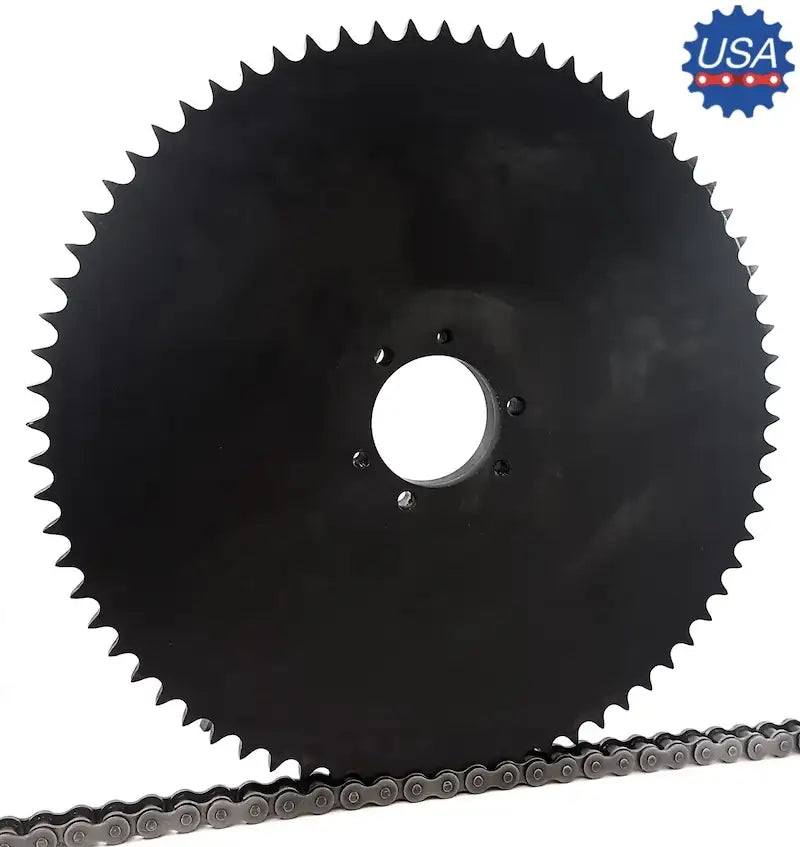

This 60SF72 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept an SF bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket. This also prevents premature wear or breakage and means that the sprocket will directly interchange with other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 60SF72 sprockets are manufactured to accept a SF type QD bushing which, we also stock with a wide range of bore sizes. Additionally offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 60SF72
- Tooth Count: 72
- Bushing Type: SF
- Outside Diameter: 17.630"
- Pitch Diameter: 17.194"
- Sprocket Type: B
- Dimension (L1): 2-1/4"
- Dimension (L2): 2-1/4"
- Dimension (C): 4-5/8"
- Dimension (Y): 1-35/64"
- Dimension (G): 61/64"
- Dimension (X): 1-1/4"
- Dimension (T): 0.459"
- Bushing Weight: 3.00 LBS
- Sprocket Weight: 29.58 LBS
Email:
- Sprocket Size: 60SF72
- Tooth Count: 72
- Bushing Type: SF
- Outside Diameter: 17.630"
- Pitch Diameter: 17.194"
- Sprocket Type: B
- Dimension (L1): 2-1/4"
- Dimension (L2): 2-1/4"
- Dimension (C): 4-5/8"
- Dimension (Y): 1-35/64"
- Dimension (G): 61/64"
- Dimension (X): 1-1/4"
- Dimension (T): 0.459"
- Bushing Weight: 3.00 LBS
- Sprocket Weight: 29.58 LBS
