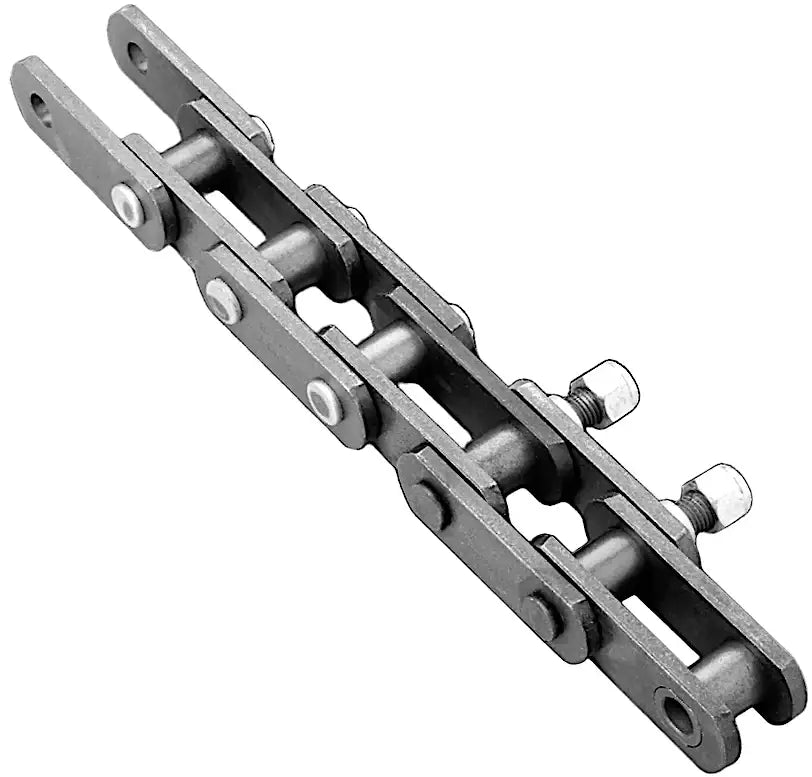

Bridge Conveyor Chain | 6015 Chain

By Application > Mining Chain & Sprockets > Mining Bridge Conveyor Chain

Bridge Conveyor Chain | 6015 Chain

Note: Custom Cut to Length Chain Also Available
SKU: 6015-BRIDGE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714691301743" , "metafield_value":""}]
Bridge Conveyor Chain | 6015 Chain Features
Bridge Conveyor Chain | 6015 Chain Specifications
6015 bridge conveyor chain is a high-strength engineer-class mining chain utilized specifically in bridge conveying applications. Our precision bridge conveyor chains showcase superior performance, reliability, and strength. Manufactured from high-grade steel grades, with specific heat-tret processes done to each component, this 6015 chain is built to operate in some of the most demanding applications in the world. Additionally, our 6015 chain directly interchanges with other brands and manufacturers. Besides the 6015 chain, we also offer 6015 sprockets! For additional information or to get a quote on the 6015 chain, contact our customer service team, and we will be happy to assist you!

6015 chain dimensions

Bridge Conveyor Chain | 6015 Chain
  • Chain size: 6015
  • Dimension (P): 2.000"
  • Dimension (B): 0.938"
  • Dimension (C): 0.875"
  • Dimension (D): 1.375"
  • Dimension (E): 0.250"
  • Dimension (F): 0.190"
  • Dimension (G): 0.500"
  • Dimension (H): 2.344"
  • Dimension (H1): 2.910"
  • Dimension (H2): 1.860"
  • Dimension (d): 3/8"-16 LOCKNUT
  • Dimension (v): 1.859"
  • Average Ultimate Strength: 32,000 LBS
  • Rated Working Load: 2,500 LBS
  • Weight: 3.90 LBS/ FT

  • Chain size: 6015
  • Dimension (P): 2.000"
  • Dimension (B): 0.938"
  • Dimension (C): 0.875"
  • Dimension (D): 1.375"
  • Dimension (E): 0.250"
  • Dimension (F): 0.190"
  • Dimension (G): 0.500"
  • Dimension (H): 2.344"
  • Dimension (H1): 2.910"
  • Dimension (H2): 1.860"
  • Dimension (d): 3/8"-16 LOCKNUT
  • Dimension (v): 1.859"
  • Average Ultimate Strength: 32,000 LBS
  • Rated Working Load: 2,500 LBS
  • Weight: 3.90 LBS/ FT
