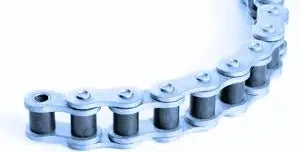

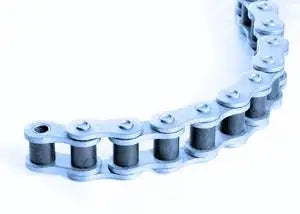

#60 TK Low Temperature Roller Chain

Roller Chain > Roller Chain by Size > #60 Roller Chain

#60 TK Low Temperature Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: 60-TK-LOW-TEMPERATURE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714690384239" , "metafield_value":""}]
#60 TK Low Temperature Roller Chain Features
#60 TK Low Temperature Roller Chain Specifications
#60 TK Low Temperature Roller Chain is manufactured specifically for operating in places that is too cold for standard roller chains. This is achieved by applying a special low-temperature oil at the factory into all of the moving components of the chain giving it the ability to operate in applications as low as -40 degrees Fahrenheit. Something special about this chain is that it features solid bushings, solid rollers, and fully heat-treated precision components to create an ultra durable high-performance low temperature roller chain. Additionally, this chain fully meets all ANSI standards so it will run on standard #60 roller chain sprockets. To get a quote or for more information on low temperature roller chain please contact us and we will be happy to assist you!

Dimensions:
#60 TK Low Temperature Roller Chain
  • Chain #: 60 TK
  • Pitch (P): 0.750"
  • Roller Link Width (W): 0.500"
  • Roller Diameter (D): 0.469"
  • Pin Diameter (O): 0.235"
  • Pin Length (E): 1.000"
  • CL Pin Length (F): 1.059"
  • Plate Thickness (T): 0.094"
  • Plate Height (H): 0.713"
  • 176F - 14F Working Load Rating: 2,090 LBS
  • 12F - -22F Working Load Rating: 1,452 LBS
  • -24F - -40F Working Load Rating: 1,210 LBS
  • Weight Per Foot: 0.966 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Chain #: 60 TK
  • Pitch (P): 0.750"
  • Roller Link Width (W): 0.500"
  • Roller Diameter (D): 0.469"
  • Pin Diameter (O): 0.235"
  • Pin Length (E): 1.000"
  • CL Pin Length (F): 1.059"
  • Plate Thickness (T): 0.094"
  • Plate Height (H): 0.713"
  • 176F - 14F Working Load Rating: 2,090 LBS
  • 12F - -22F Working Load Rating: 1,452 LBS
  • -24F - -40F Working Load Rating: 1,210 LBS
  • Weight Per Foot: 0.966 LBS
