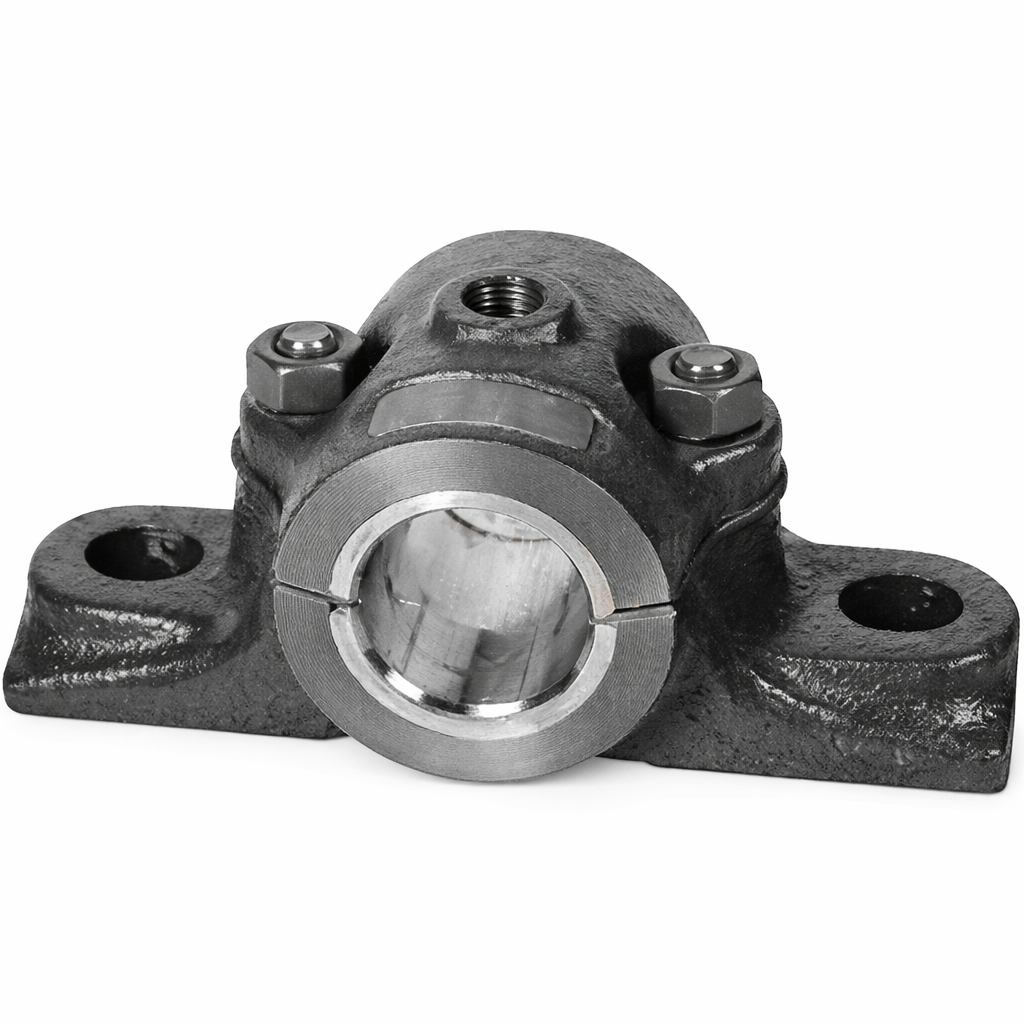

60-01-0012 Babbitt Bearing | 3/4" Journal Bearing

60-01-0012 is a Made in USA babbitted journal bearing designed to deliver reliable performance across a variety of industrial applications. This bearing is manufactured to accommodate a 3/4" shaft and features a babbitt bearing insert known for low friction and effective heat dissipation, making it well suited for high-load, continuous-duty environments.

Housed within a durable journal bearing body, this babbitted journal bearing utilizes a simple yet proven design that has been widely adopted throughout multiple industries. These bearings are commonly used in applications such as compressors, turbines, large power generators, and other heavy-duty rotating equipment where dependable load support and long service life are necessary.

Manufactured in the USA and produced to industry-standard dimensions, this journal bearing is designed for direct interchangeability and reliable performance. For additional information or to request a quote on a 60-01-0012 bearing, please contact our sales team and we will be happy to assist you!

60-01-0012 Journal Bearing Dimensions

• Part #: 60-01-0012
• Shaft Size: 3/4"
• Bearing Type: Solid Journal Bearing
• Lining Material: Babbitt
• Housing Material: Steel
• Dimension (A): 13/16"
• Dimension (B): 3-3/4"
• Dimension (C): 1-1/8"
• Dimension (D): 3/8"
• Dimension (E): 2-5/8"
• Bolt Diameter (F): 5/16"
• Dimension (H): 1-19/32"
• Dimension (L): 1-5/8"
• Dimension (M): 1/2"
• Pipe Tap: 1/8"
• Weight: 0.9 lbs
