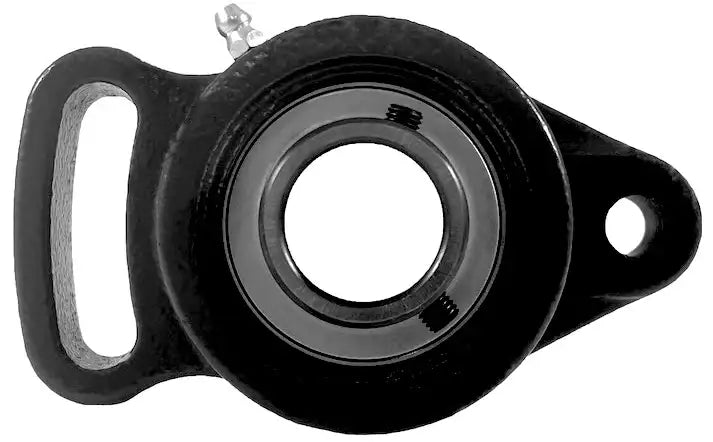

UCFA210-32 Bearing | 2" Adjustable Flange Bearing

UCFA210-32 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 2" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA210-32 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA210-32 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA210-32 Bearing Dimensions

• Part #: UCFA210-32
• Bearing I.D: 2"
• Dimension (a): 7-7/16"
• Dimension (e): 6-3/32"
• Dimension (i): 55/64"
• Dimension (g): 23/32"
• Dimension (m): 1-9/16"
• Dimension (S): 43/64"
• Dimension (S1): 2-15/16"
• Dimension (b): 4-17/32"
• Dimension (f): 3-5/8"
• Dimension (Z): 2-5/32"
• Dimension (Bi): 2.031"
• Dimension (n): 0.748"
• (Bolt Size): 1/2"
• Insert Bearing Part #: UC210-32
• Housing Part #: FA210
• Weight: 5.70 LBS
