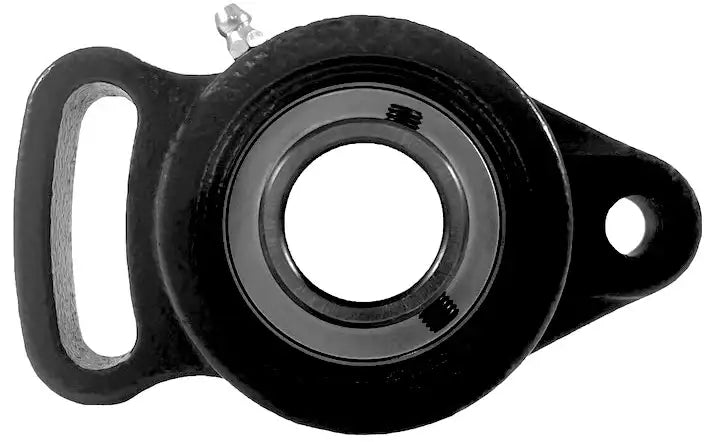

UCFA207-21 Bearing | 1-5/16" Adjustable Flange Bearing

UCFA207-21 bearing is a normal duty two bolt adjustable flange bearing that utilises two set-screws for securing onto a 1-5/16" diameter shaft. The housing is constructed from durable cast steel and encases a performance C3 precision bearing insert creating a flange bearing capable of long term performance and durability. The adjustable design of a UCFA207-21 bearing gives it the ability to be placed in a broader range of applications than a standard two-bolt flange bearing and improves the mounting position ability. Commonly, this bearing style can be found in a range of agricultural and industrial applications. Additionally, our UCFA207-21 bearing is directly interchangeable with other brands! For pricing and availability or more information, contact our customer service team, and we will be happy to assist you!

UCFA207-21 Bearing Dimensions

• Part #: UCFA207-21
• Bearing I.D: 1-5/16"
• Dimension (a): 6-3/32"
• Dimension (e): 5-1/32"
• Dimension (i): 25/32"
• Dimension (g): 5/8"
• Dimension (m): 1-11/32"
• Dimension (S): 19/32"
• Dimension (S1): 2-3/8"
• Dimension (b): 3-17/32"
• Dimension (f): 2-15/16"
• Dimension (Z): 1-25/32"
• Dimension (Bi): 1.689"
• Dimension (n): 0.689"
• (Bolt Size): 7/16"
• Insert Bearing Part #: UC207-21
• Housing Part #: FA207
• Weight: 3.30 LBS
