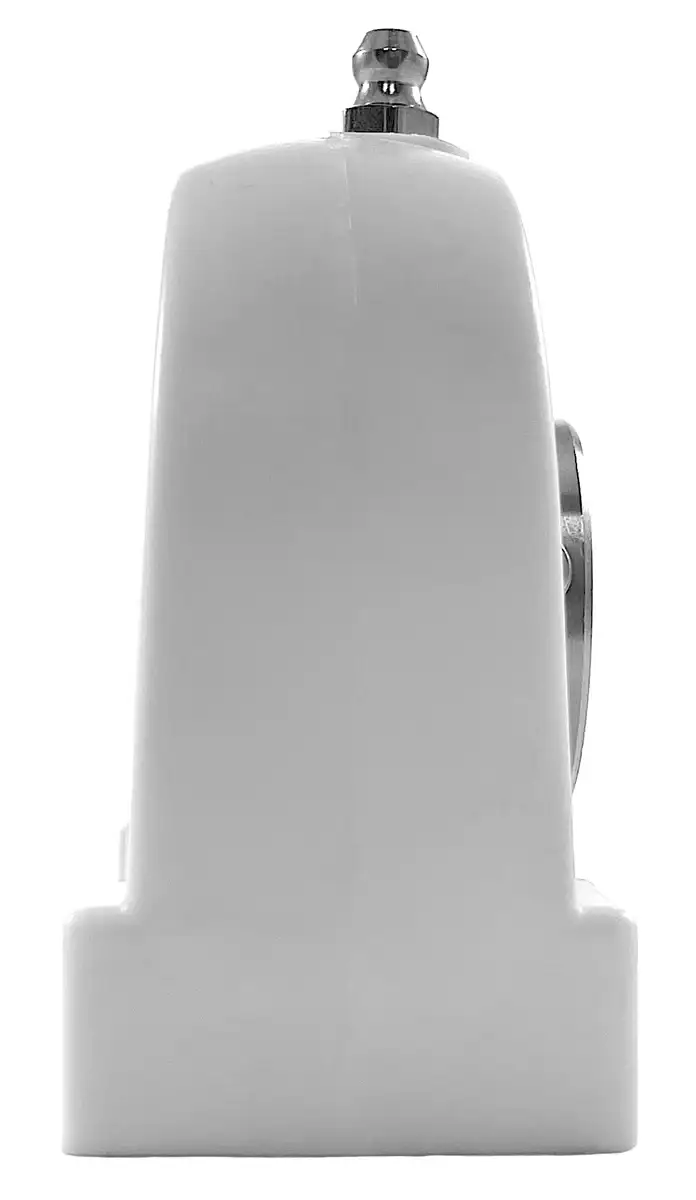

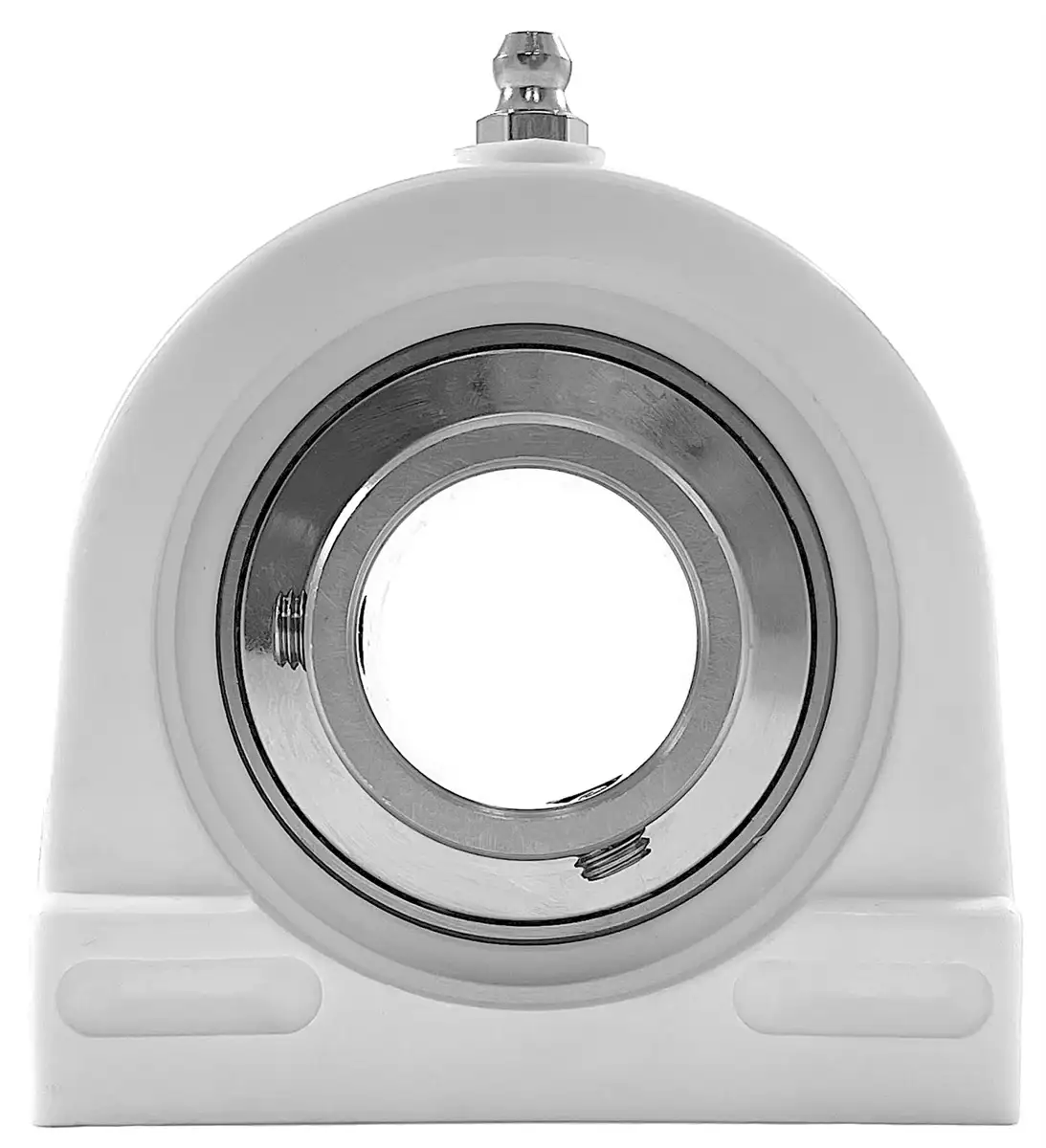

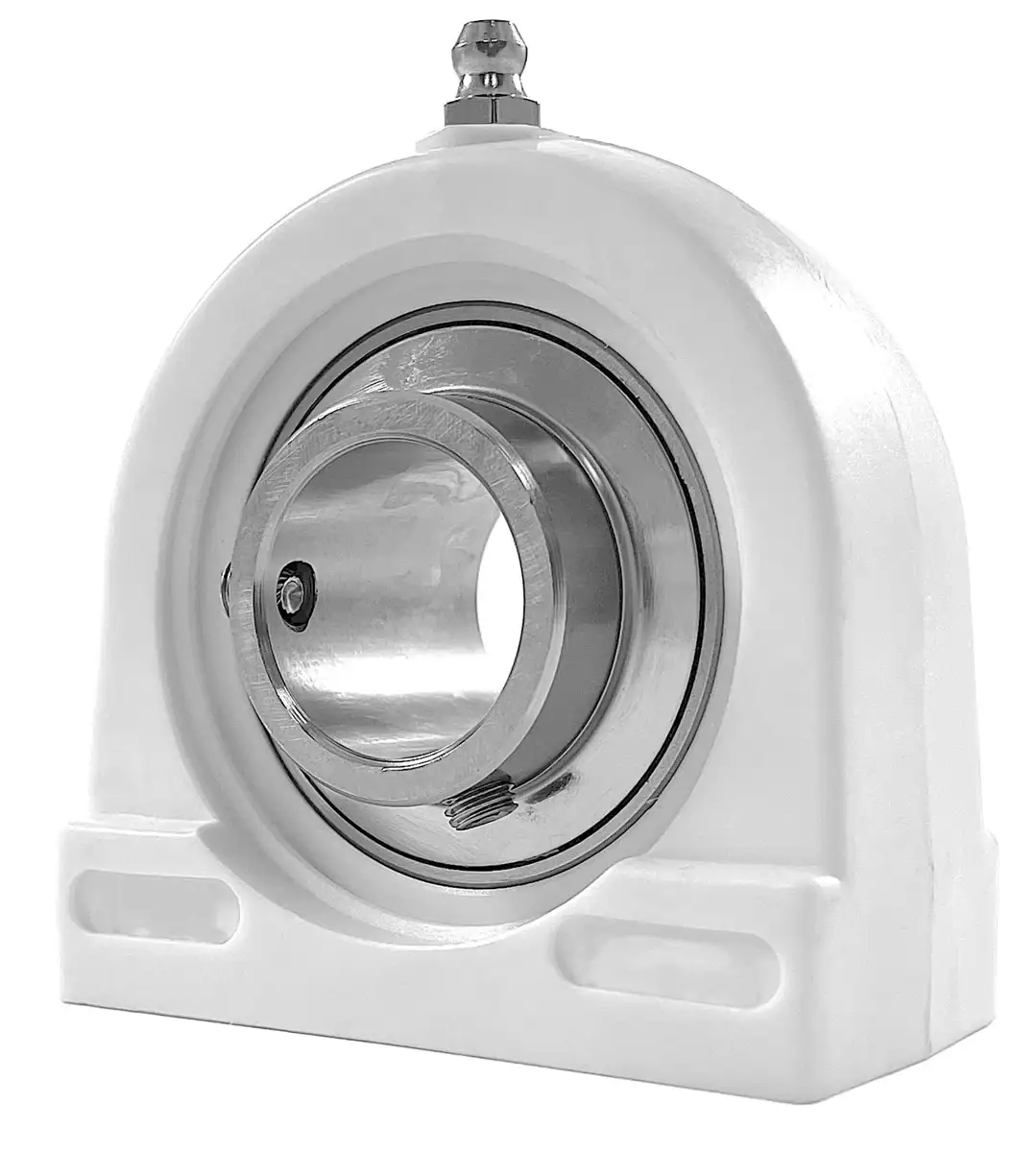

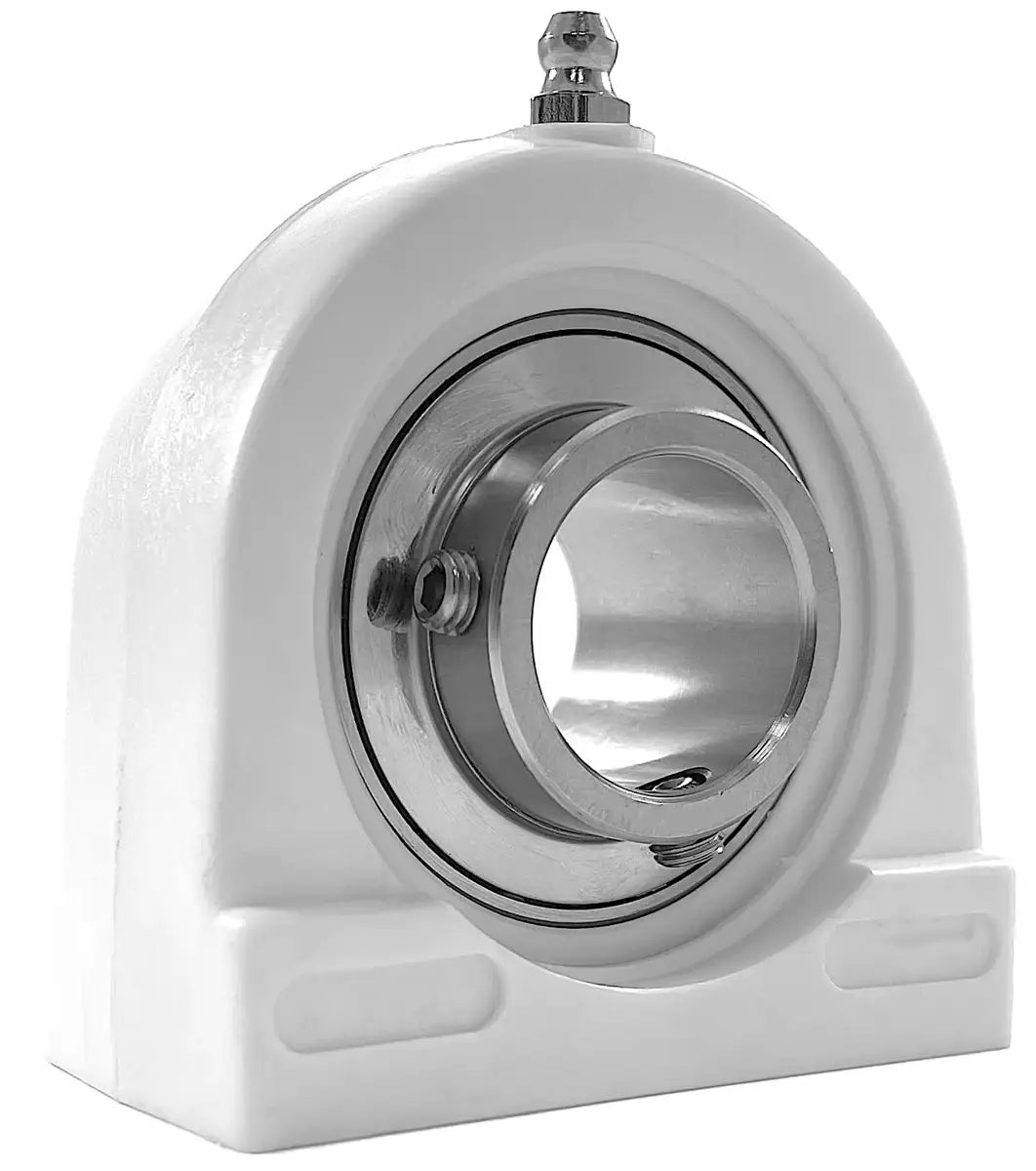

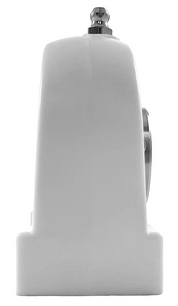

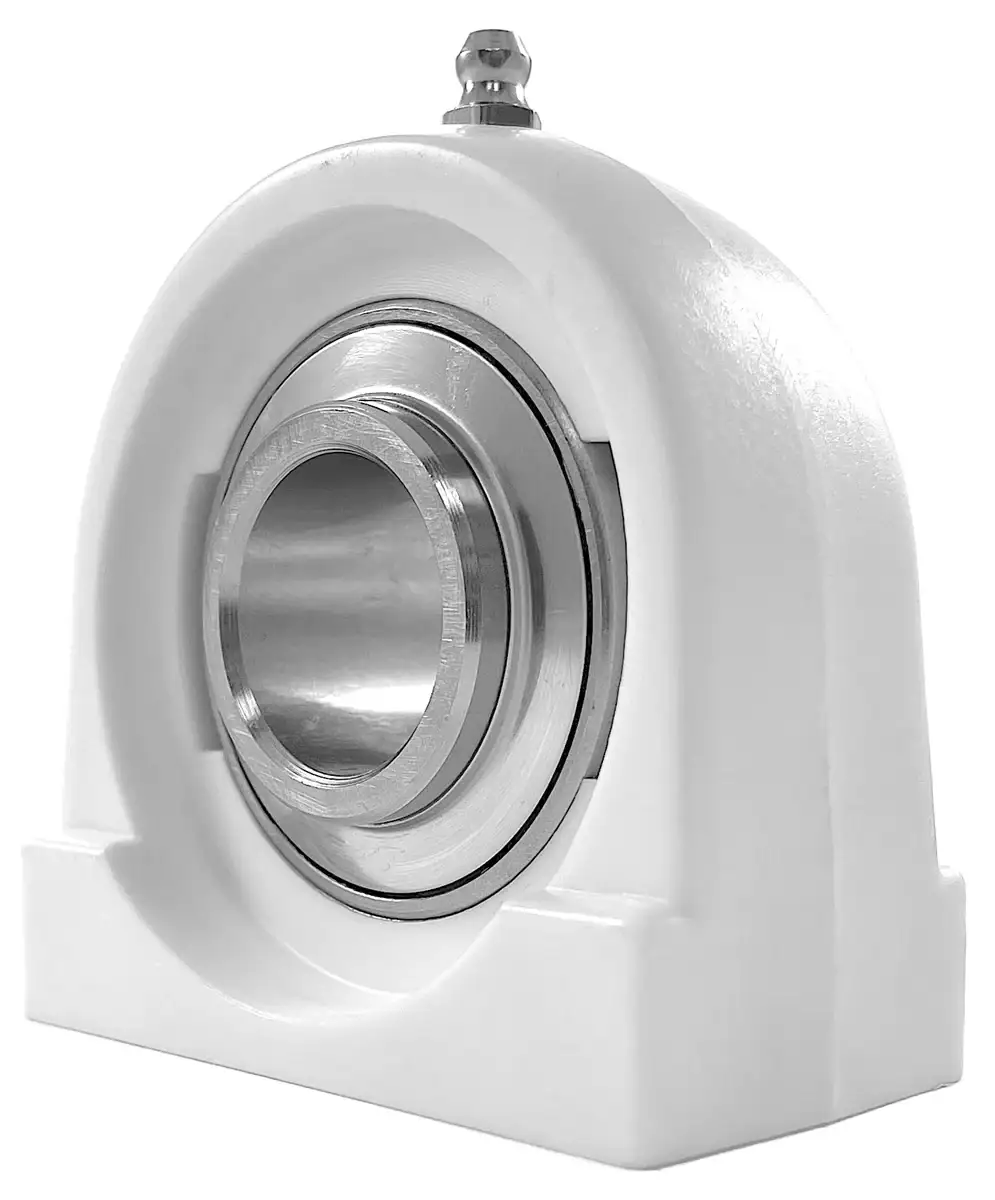

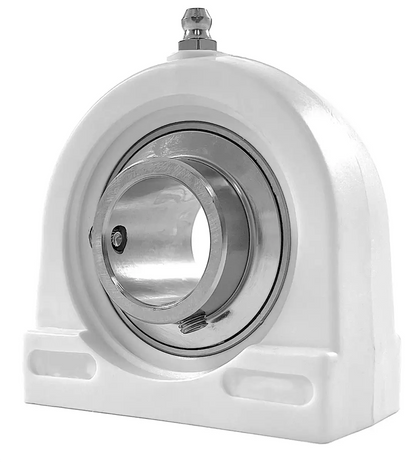

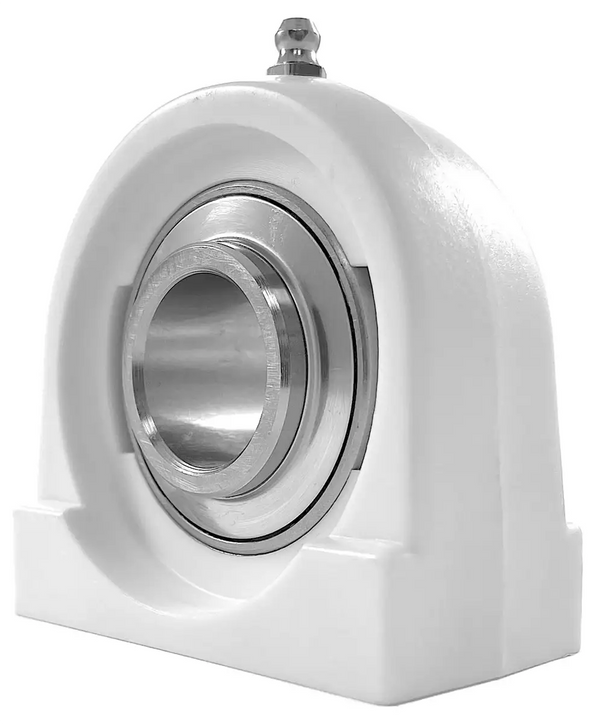

SSUCTPTB201-8 Bearing | Thermoplastic 1/2" Bearing

SSUCTPTB201-8 thermoplastic bearing is a two-bolt tapped base pillow block bearing with a 1/2" bore capable of operating in food-grade and wash-down applications. Were excited to offer a quality thermoplastic tapped base bearing that is engineered and manufactured to perform within various industrial circumstances! What sets our SSUCTPTB201-8 bearing apart from others is the integrity of a specially formulated polymer housing that exserts strength and durability, along with solid stainless steel bushings moulded directly within the mounting holes of the housing for added mounting capacity and rigidity. But no premium bearing can be complete without a quality insert; the 1/2" bearing that comes standard with this unit meets C3 precision standards and is made of top-grade stainless steel materials for the best combination of performance, precision, and durability. Combining these features creates a high-strength and performance-based thermoplastic SSUCTPTB201-8 bearing unit. Tapped base bearings are designed to utilize a smaller footprint on the mounting surface, they also reduce catch points by eliminating bolt heads protruding on either sides of the unit. More specifically, SSUCTPTB201-8 bearings are found in a broad range of applications such as; packaging, food, beverage, wash-down, corrosive, and more! This bearing is dimensionally standard, which means it will directly interchange with most other brands. Finally, SSUCTPTB201-8 bearings utilize two strategically placed set-screws for securing a 1/2" shaft; the set-screw method of securing onto a shaft provides the benefits of easy placement and easy installation/ uninstall of the unit. For additional information or to get a quote on our premium SSUCTPTB201-8 bearing, contact our customer support team, and we will be happy to assist you!

SSUCTPTB201-8 Bearing Dimensions

• Bearing Part #: SSUCTPTB201-8
• Bearing I.D.: 1/2"
• Dimension (a): 1-5/16"
• Dimension (b): 1-23/64"
• Dimension (m): 1-19/32"
• Dimension (w): 2"
• Dimension (s): 2-7/8"
• Dimension (Bi): 3/8-16"
• Dimension (n): 1.221"
• Dimension (g): 0.500"
• Bolt Size: 1/2"
• Insert Bearing #: SSUC201-8
• Housing #: TPTB204
• Weight: 0.59 LBS
