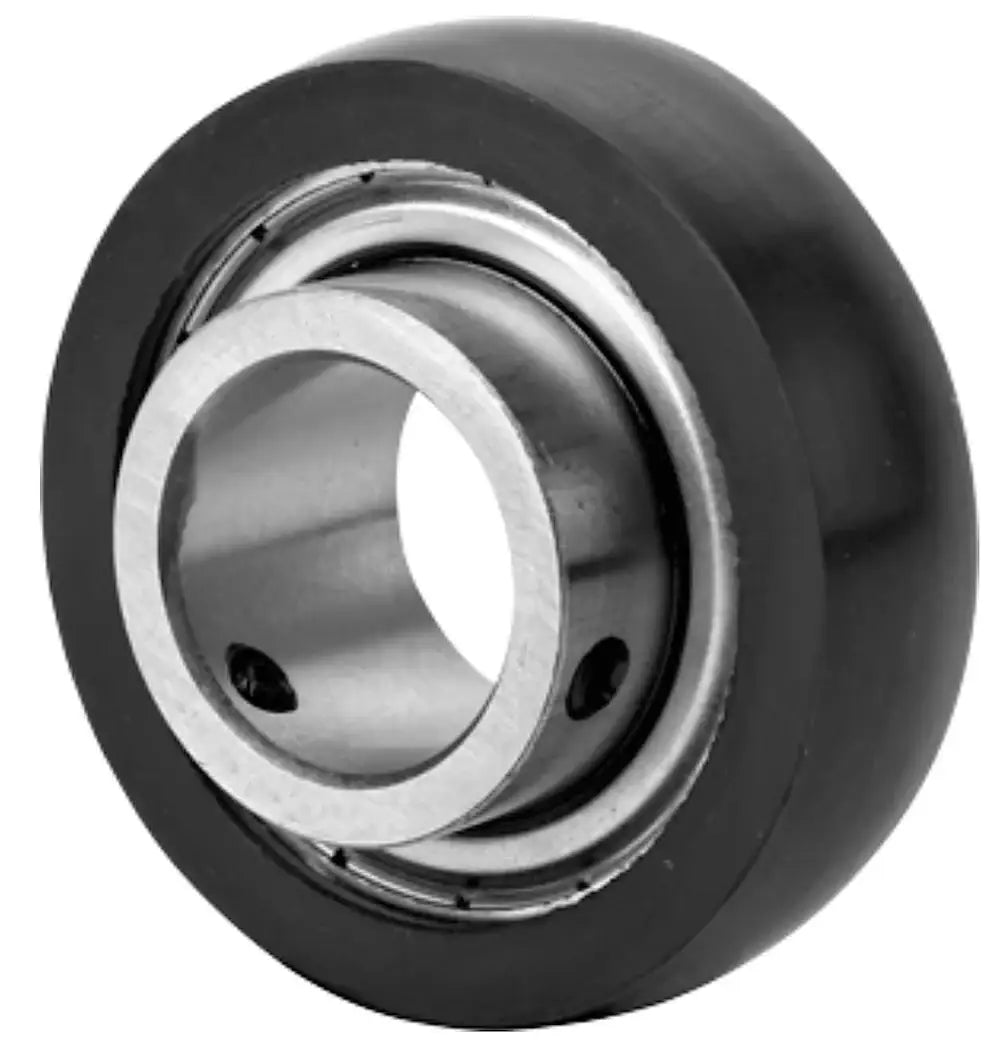

SBR206 Bearing | SBR206 Vibration Damping Insert Bearing
$39.99
SKU: 5652-SBR206-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
SBR206 Bearing | SBR206 Vibration Damping Insert Bearing Description/Features
SBR206 Bearing | SBR206 Vibration Damping Insert Bearing Specifications
Our vibration-damping SBR206 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 30mm bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SBR206 bearing utilises two set screws for securing onto a 30mm shaft and a static conductive rubber cushion that dampens vibrations. Contact our customer support team for additional information or to get a quote on SBR206 bearings, and we will be happy to assist you!
SBR206 Bearing Dimensions
- Unit Part #: SBR206
- Bearing I.D: 30mm
- Dimension (D): 2-27/32"
- Dimension (B1): 1.181"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-19/32"
- Bearing Part #: SB206
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SBR206
- Bearing I.D: 30mm
- Dimension (D): 2-27/32"
- Dimension (B1): 1.181"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-19/32"
- Bearing Part #: SB206
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
