Power Transmission > Bearings > Mounted Bearings > Insert Bearings
SBR206-19 Bearing | SBR206-19 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$35.64
SKU: 5652-SBR206-19-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SBR206-19 Bearing | SBR206-19 Vibration Damping Insert Bearing Features
SBR206-19 Bearing | SBR206-19 Vibration Damping Insert Bearing Specifications

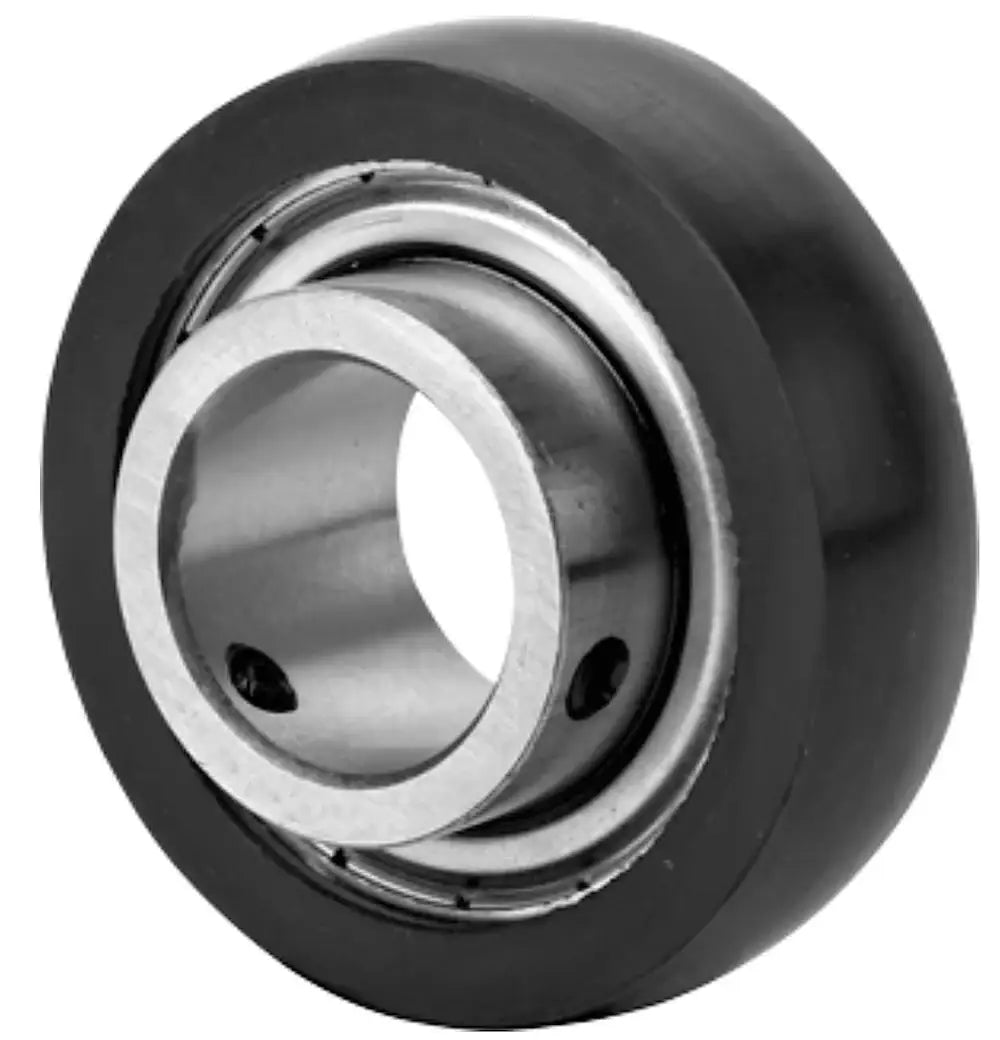

Our vibration-damping SBR206-19 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 1-3/16" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SBR206-19 bearing utilises two set screws for securing onto a 1-3/16" shaft and a static conductive rubber cushion that dampens vibrations. Contact our customer support team for additional information or to get a quote on SBR206-19 bearings, and we will be happy to assist you!
SBR206-19 Bearing Dimensions
- Unit Part #: SBR206-19
- Bearing I.D: 1-3/16"
- Dimension (D): 2-27/32"
- Dimension (B1): 1.181"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-19/32"
- Bearing Part #: SB206-19
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SBR206-19
- Bearing I.D: 1-3/16"
- Dimension (D): 2-27/32"
- Dimension (B1): 1.181"
- Dimension (A): 7/8"
- Dimension (M): 2-7/16"
- Dimension (d1): 1-19/32"
- Bearing Part #: SB206-19
- Rubber Part #: R-7
- Housing Radial Load Rating: 300 LBF
