Power Transmission > Bearings > Mounted Bearings > Insert Bearings

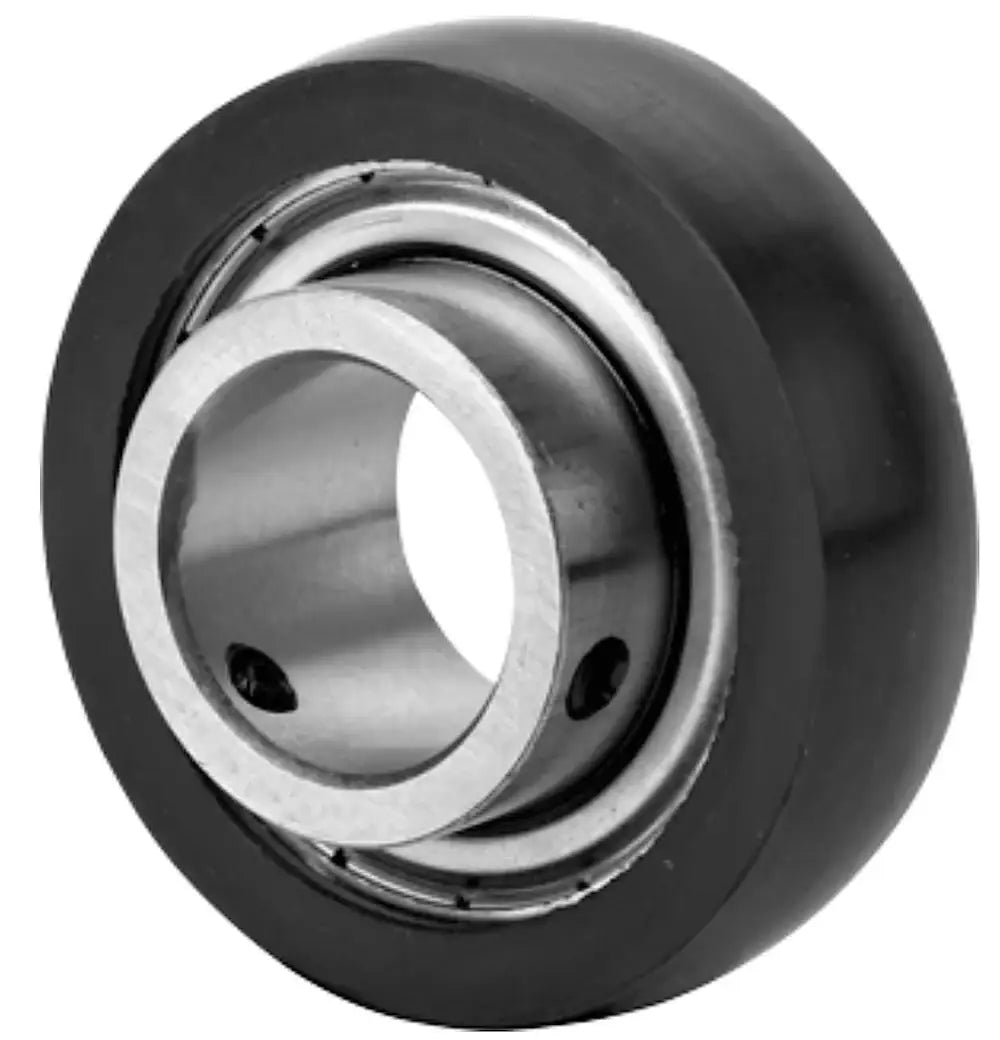

SBR205 Bearing | SBR205 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$29.22
SKU: 5652-SBR205-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SBR205 Bearing | SBR205 Vibration Damping Insert Bearing Features
SBR205 Bearing | SBR205 Vibration Damping Insert Bearing Specifications
Our vibration-damping SBR205 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 25mm bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SBR205 bearing utilises two set screws for securing onto a 25mm shaft and a static conductive rubber cushion that dampens vibrations. Contact our customer support team for additional information or to get a quote on SBR205 bearings, and we will be happy to assist you!
SBR205 Bearing Dimensions
- Unit Part #: SBR205
- Bearing I.D: 25mm
- Dimension (D): 2-29/64"
- Dimension (B1): 1.063"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-5/16"
- Bearing Part #: SB205
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
- Unit Part #: SBR205
- Bearing I.D: 25mm
- Dimension (D): 2-29/64"
- Dimension (B1): 1.063"
- Dimension (A): 13/16"
- Dimension (M): 1-27/32"
- Dimension (d1): 1-5/16"
- Bearing Part #: SB205
- Rubber Part #: R-6
- Housing Radial Load Rating: 300 LBF
