Power Transmission > Bearings > Mounted Bearings > Insert Bearings

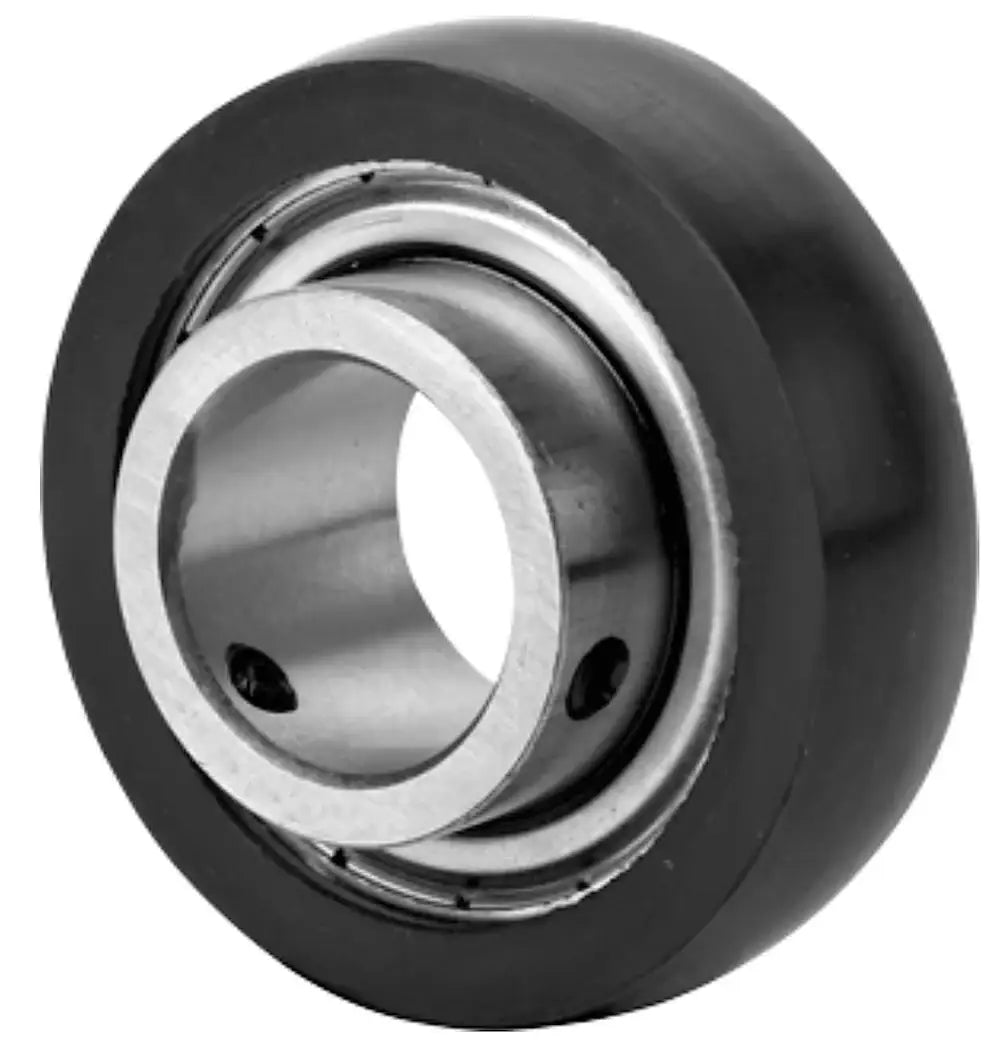

SBR204 Bearing | SBR204 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$24.81
SKU: 5652-SBR204-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SBR204 Bearing | SBR204 Vibration Damping Insert Bearing Features
SBR204 Bearing | SBR204 Vibration Damping Insert Bearing Specifications
Our vibration-damping SBR204 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 20mm bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SBR204 bearing utilises two set screws for securing onto a 20mm shaft and a static conductive rubber cushion that dampens vibrations. Contact our customer support team for additional information or to get a quote on SBR204 bearings, and we will be happy to assist you!
SBR204 Bearing Dimensions
- Unit Part #: SBR204
- Bearing I.D: 20mm
- Dimension (D): 2-7/64"
- Dimension (B1): 0.866"
- Dimension (A): 11/16"
- Dimension (M): 1-5/8"
- Dimension (d1): 1-1/8"
- Bearing Part #: SB204
- Rubber Part #: R-5
- Housing Radial Load Rating: 250 LBF
- Unit Part #: SBR204
- Bearing I.D: 20mm
- Dimension (D): 2-7/64"
- Dimension (B1): 0.866"
- Dimension (A): 11/16"
- Dimension (M): 1-5/8"
- Dimension (d1): 1-1/8"
- Bearing Part #: SB204
- Rubber Part #: R-5
- Housing Radial Load Rating: 250 LBF
