SBPF211-35G Stamped Steel 4-Bolt Flange Bearing | 2-3/16" Bearing

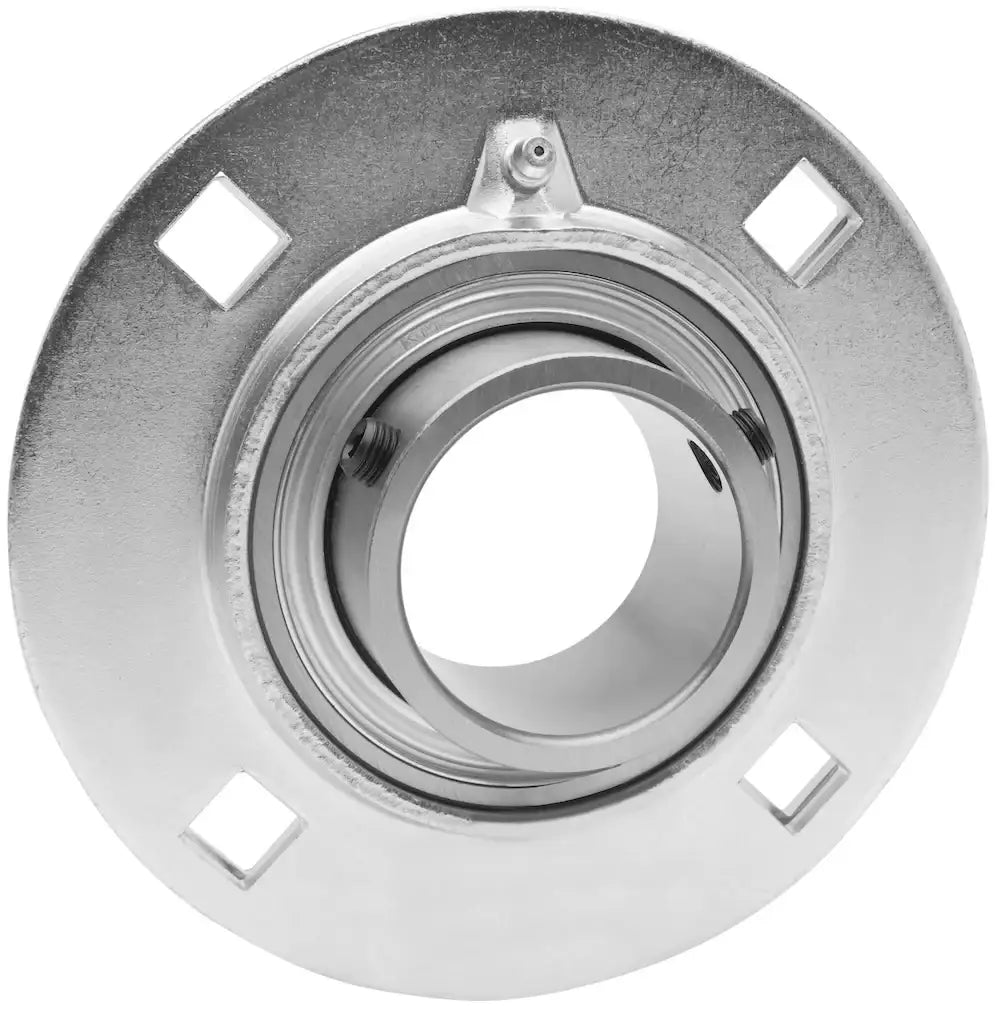

SBPF211-35G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 2-3/16" insert bearing that utilizes set screws for securing onto a shaft. SBPF211-35G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF211-35G 2-3/16" bearing has incredible holding power and stability. Additionally, our SBPF211-35G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF211-35G bearing, contact our customer support team, and we will be happy to assist you!

SBPF211-35G Bearing Dimensions

• Part #: SBPF211-35G
• Bearing ID: 2-3/16"
• Dimension (a): 6-9/16"
• Dimension (e): 5-7/16"
• Dimension (g): 1-1/64"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 4-7/16"
• Dimension (Bi): 1.750"
• Dimension (n): 0.469"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB211-35
• Housing #: PF211G
• Weight: 4.40 LBS
