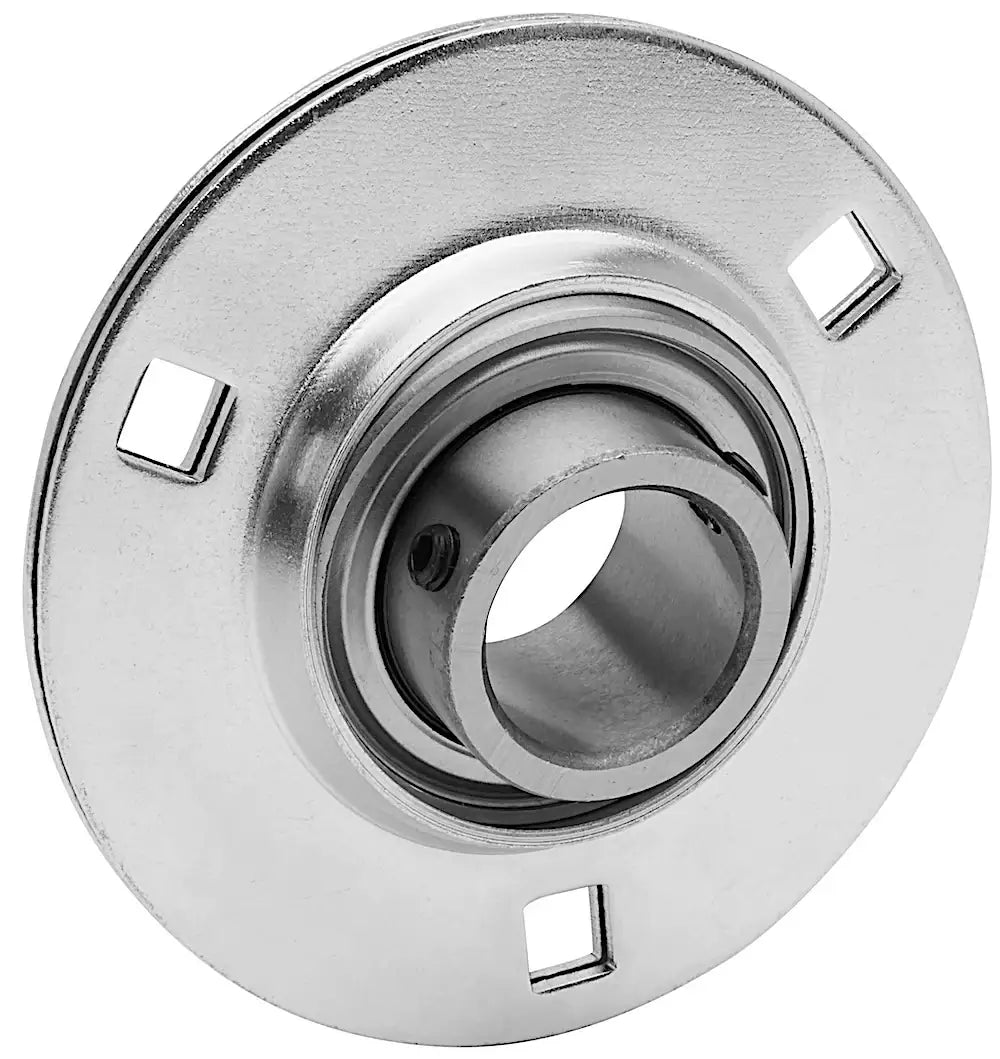

SBPF207G Stamped Steel 3-Bolt Flange Bearing | 35mm Bearing

SBPF207G stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 35mm insert bearing that utilizes set screws for securing onto a shaft. SBPF207G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPF207G 35mm bearing has incredible holding power and stability. Additionally, our SBPF207G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF207G bearing, contact our customer support team, and we will be happy to assist you!

SBPF207G Bearing Dimensions

• Part #: SBPF207G
• Bearing ID: 35mm
• Dimension (a): 4-13/16"
• Dimension (e): 3-15/16"
• Dimension (g): 7/64"
• Dimension (c): 3/4"
• Dimension (s): 13/32"
• Dimension (f): 3-3/16"
• Dimension (Bi): 1.260"
• Dimension (n): 0.335"
• Bolt Size: 3/8"
• Number of Bolt Holes: 3
• Insert Bearing #: SB207
• Housing #: PF207G
• Weight: 1.45 LBS
