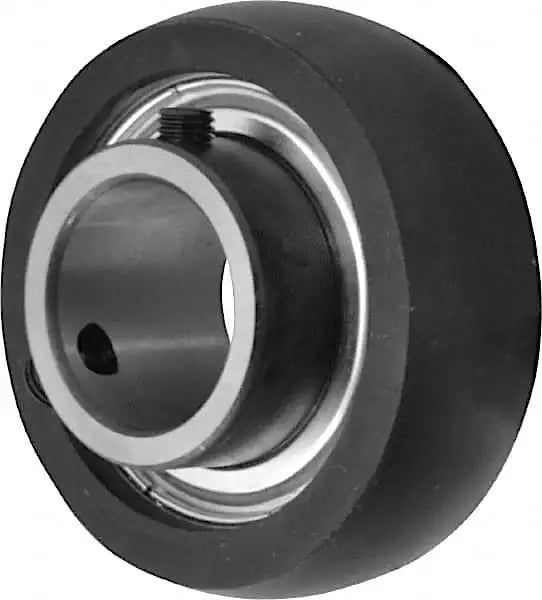

SAR204 Bearing | SAR204 Vibration Damping Insert Bearing

Note: Custom Cut to Length Chain Also Available
$24.93
SKU: 5652-SAR204-BEARING
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714663612783" , "metafield_value":""}]
SAR204 Bearing | SAR204 Vibration Damping Insert Bearing Features
SAR204 Bearing | SAR204 Vibration Damping Insert Bearing Specifications
Our vibration-damping SAR204 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 20mm bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The SAR204 bearing utilises an eccentric locking collar for securing onto a 20mm shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on SAR204 bearings, contact our customer support team, and we will be happy to assist you!

SAR204 Bearing Dimensions

SAR204 Bearing | SAR204 Vibration Damping Insert Bearing
  • Unit Part #: SAR204
  • Bearing I.D: 20mm
  • Dimension (D): 2-7/64"
  • Dimension (L): 1.220"
  • Dimension (A): 11/16"
  • Dimension (M): 1-5/8"
  • Dimension (d1): 1-5/16"
  • Dimension (S1): 59/64"
  • Dimension (T): 11/32"
  • Bearing Part #: SA204
  • Rubber Part #: R-5
  • Housing Radial Load Rating: 250 LBF
  • Unit Part #: SAR204
  • Bearing I.D: 20mm
  • Dimension (D): 2-7/64"
  • Dimension (L): 1.220"
  • Dimension (A): 11/16"
  • Dimension (M): 1-5/8"
  • Dimension (d1): 1-5/16"
  • Dimension (S1): 59/64"
  • Dimension (T): 11/32"
  • Bearing Part #: SA204
  • Rubber Part #: R-5
  • Housing Radial Load Rating: 250 LBF
