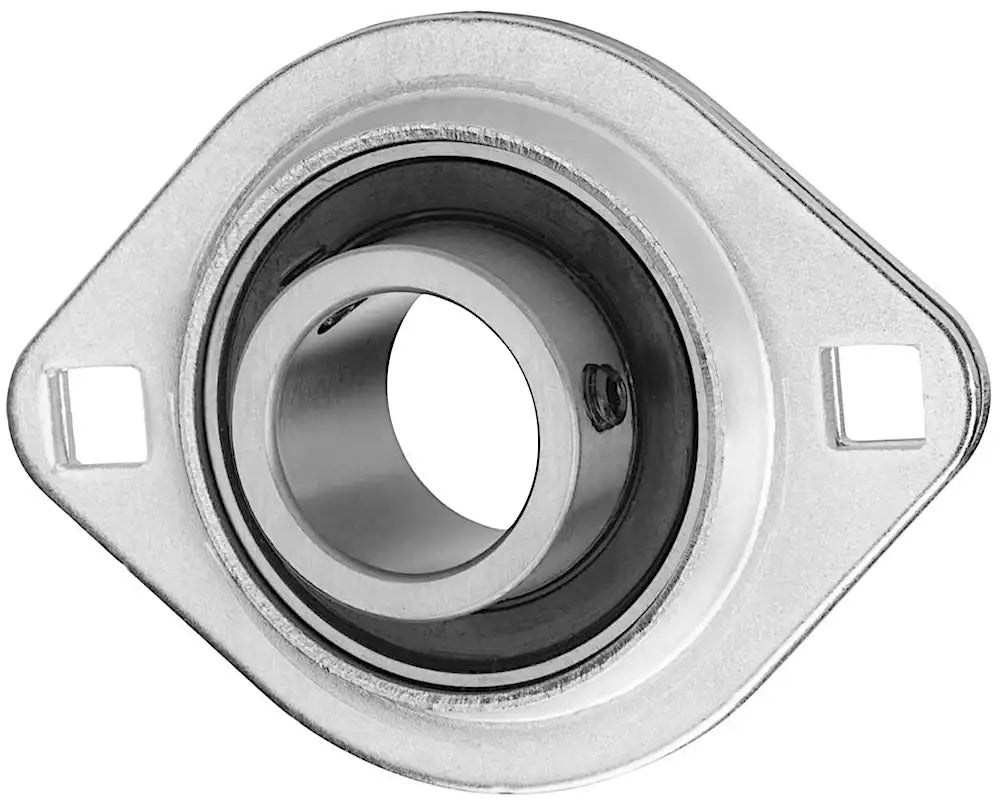

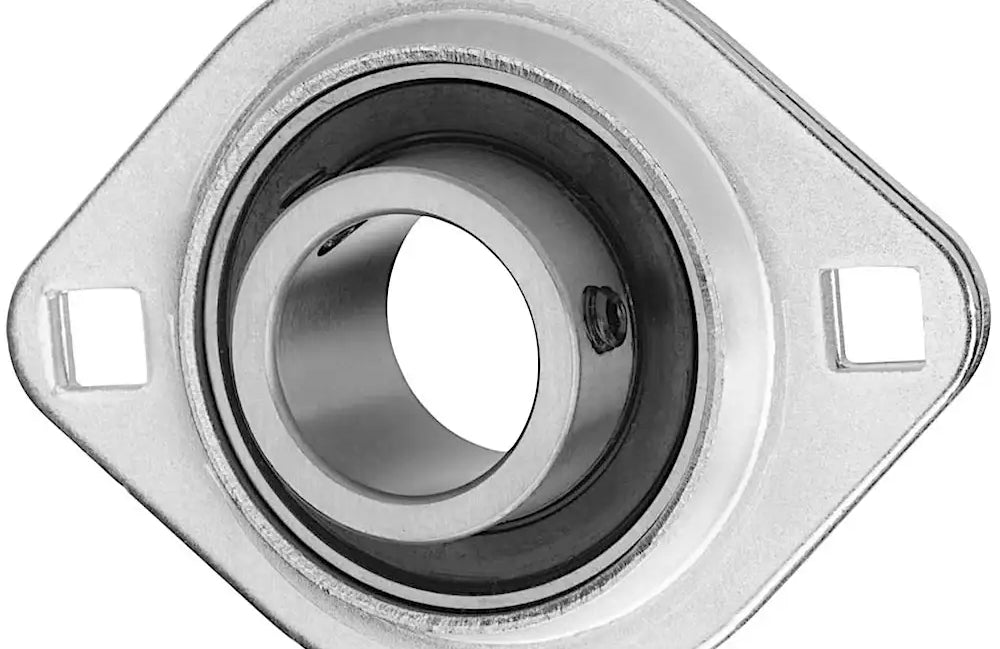

SAPFL204 Stamped Steel 2-Bolt Flange Bearing | 20mm Bearing

SAPFL204 stamped steel bearing is a 2-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 20mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFL204 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the SAPFL204 20mm bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our SAPFL204 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFL204 bearing, contact our customer support team, and we will be happy to assist you!

SAPFL204 Bearing Dimensions

• Bearing Part #: SAPFL204
• Bearing I.D: 20mm
• Dimension (a): 3-35/64"
• Dimension (e): 2-51/64"
• Dimension (g): 3/32"
• Dimension (c): 5/8"
• Dimension (s): 11/32"
• Dimension (b): 2-5/8"
• Dimension (f): 2-7/32"
• Dimension (L): 1.220"
• Dimension (n): 0.276"
• Dimension (W): 1-1/4"
• Bolt Size: 5/16"
• Bearing Part #: SA204
• Housing Part #: PFL204
• Weight: 0.66 LBS
