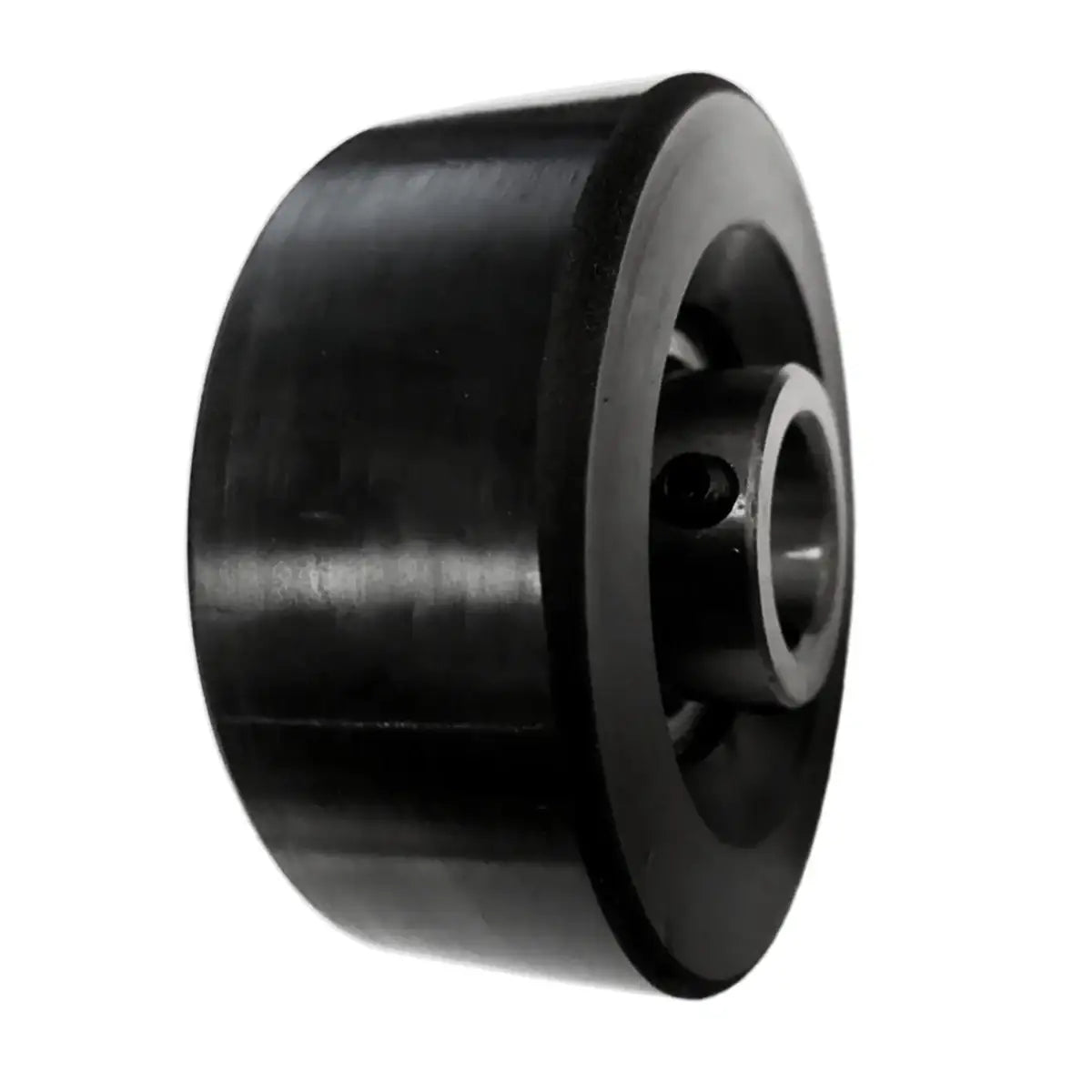

RCSM-20 Bearing | RCSM-20 Vibration Damping Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$53.43
SKU: 5652-RCSM-20-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
RCSM-20 Bearing | RCSM-20 Vibration Damping Insert Bearing Features
RCSM-20 Bearing | RCSM-20 Vibration Damping Insert Bearing Specifications
Our vibration-damping RCSM-20 bearing is made according to C3 precision standards, utilises high-grade materials for superior performance and durability, and has a 1-1/4" bearing inside diameter. Vibration damping bearings are used in various industrial applications such as; HVAC, conveyor beds, live bottom rollers, high-speed rollers, and more! The RCSM-20 bearing utilises an eccentric locking collar for securing onto a 1-1/4" shaft and a static conductive rubber cushion that dampens vibrations. For additional information or to get a quote on RCSM-20 bearings, contact our customer support team, and we will be happy to assist you!
RCSM-20 Bearing Dimensions
- Unit Part #: RCSM-20
- Bearing I.D: 1-1/4"
- Dimension (D): 3-3/32"
- Dimension (A): 1-3/16"
- Dimension (M): 1-7/8"
- Dimension (d1): 1-3/4"
- Dimension (S1): 1-3/32"
- Dimension (T): 19/32"
- Bearing Part #: CSA206-20
- Rubber Part #: RCSM 62/79
- Housing Radial Load Rating: 300 LBF
- Weight: 1.65 LBS
- Unit Part #: RCSM-20
- Bearing I.D: 1-1/4"
- Dimension (D): 3-3/32"
- Dimension (A): 1-3/16"
- Dimension (M): 1-7/8"
- Dimension (d1): 1-3/4"
- Dimension (S1): 1-3/32"
- Dimension (T): 19/32"
- Bearing Part #: CSA206-20
- Rubber Part #: RCSM 62/79
- Housing Radial Load Rating: 300 LBF
- Weight: 1.65 LBS
