Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings
PFL203 Stamped Steel 2-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$5.85
SKU: 5652-PFL203-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFL203 Stamped Steel 2-Bolt Flange Bearing Housing Features
PFL203 Stamped Steel 2-Bolt Flange Bearing Housing Specifications

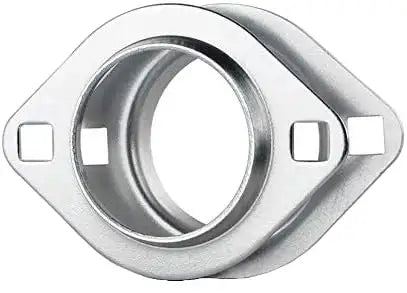

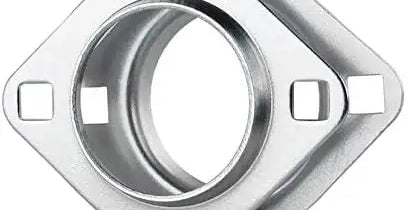

PFL203 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 2-bolt flange bearing housing. Our PFL203 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFL203 flange bearing housing that will impress. Two-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFL203 housings, contact our customer support team, and we will be happy to assist you!
PFL203 Housing Dimensions
- Housing Part #: PFL203
- Shaft Sizes: 1/2" to 5/8"
- Dimension (A): 40mm
- Dimension (B): 2-5/16"
- Dimension (C): 3-3/16"
- Dimension (D): 2-1/2"
- Dimension (E): 9/32"
- Dimension (F): 9/32"
- Dimension (H): 1-15/16"
- Dimension (J): 0.075"
- Bolt Size: 1/4"
- Radial Load Rating: 600 LBS
- Fafnir Part #: 40MST
- SKF Part #: FT-40
- NTN Part#: PFL203
- Housing Part #: PFL203
- Shaft Sizes: 1/2" to 5/8"
- Dimension (A): 40mm
- Dimension (B): 2-5/16"
- Dimension (C): 3-3/16"
- Dimension (D): 2-1/2"
- Dimension (E): 9/32"
- Dimension (F): 9/32"
- Dimension (H): 1-15/16"
- Dimension (J): 0.075"
- Bolt Size: 1/4"
- Radial Load Rating: 600 LBS
- Fafnir Part #: 40MST
- SKF Part #: FT-40
- NTN Part#: PFL203
