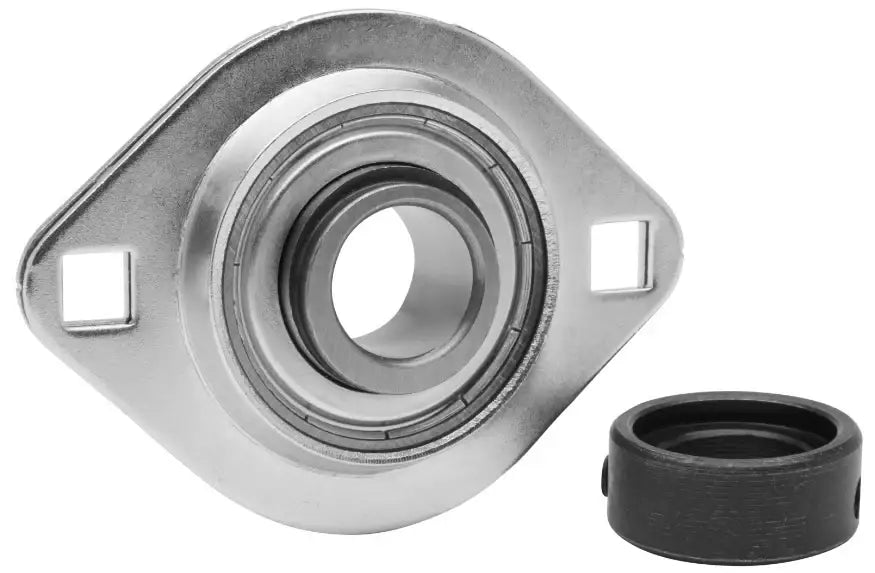

CSA730MFM205 Stamped Steel 2-Bolt Flange Bearing | Vibration Damping

CSA730MFM205 stamped steel bearing is a 2-bolt vibration-damping flush mount flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 25mm insert bearing that utilises an eccentric locking collar for securing onto a shaft. The bearing unit features a rubber cushion made from high-quality rubber for decreasing vibration. CSA730MFM205 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the CSA730MFM205 25mm bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our CSA730MFM205 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our flush mount CSA730MFM205 bearing, contact our customer support team, and we will be happy to assist you!

CSA730MFM205 Bearing Dimensions

• Bearing Unit Part #: CSA730MFM205
• Bearing I.D: 25mm
• Dimension (a): 4-1/2"
• Dimension (e): 3-3/8"
• Dimension (b): 2-1/2"
• Dimension (D): 29/64"
• Dimension (E): 3/4"
• Dimension (L): 1.220"
• Bolt Size: 5/16"
• Bearing Part #: CSA205
• Housing With Rubber Insert Part #: 730-2-MFM
• Weight: 0.50 LBS
