CSA40MFM202-10 Stamped Steel 2-Bolt Flange Bearing | 5/8" Bearing

CSA40MFM202-10 stamped steel bearing is a 2-bolt flush mount flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 5/8" insert bearing that utilizes set screws for securing onto a shaft. CSA40MFM202-10 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the CSA40MFM202-10 5/8" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our CSA40MFM202-10 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our flush mount CSA40MFM202-10 bearing, contact our customer support team, and we will be happy to assist you!

CSA40MFM202-10 Bearing Dimensions

• Bearing Unit Part #: CSA40MFM202-10
• Bearing I.D.: 5/8"
• Dimension (a): 3-3/16"
• Dimension (e): 2-33/64"
• Dimension (s): 9/32"
• Dimension (b): 2-21/64"
• Dimension (L): 1.126"
• Dimension (W): 1-1/8"
• Bolt Size: 1/4"
• Insert Bearing #: CSA202-10

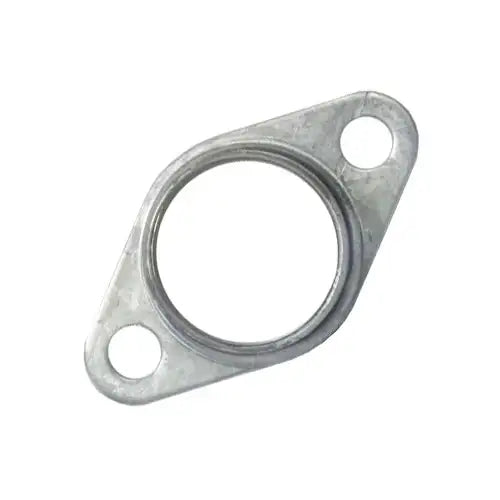

• Housing #: 40-2-MFM
• Weight: 0.44 LBS
