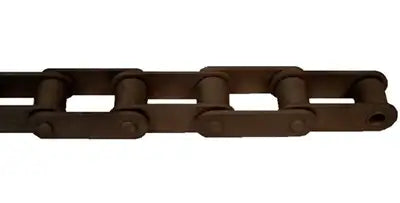

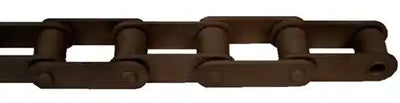

55VD Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 55VD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
55VD Roller Chain - Agricultural Chain Features
55VD Roller Chain - Agricultural Chain Specifications
55VD roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
55VD Chain Dimensions
- Pitch (P): 41.40mm
- Roller Diameter (D): 17.90mm
- Dimension (W): 23.00mm
- Pin Diameter (E): 8.22mm
- Pin Length (C): 39.3mm
- Plate Height (H): 20.00mm
- Plate Thickness (T): 2.80mm
- Tensile Strength: 9,441 LBS
- Pitch (P): 41.40mm
- Roller Diameter (D): 17.90mm
- Dimension (W): 23.00mm
- Pin Diameter (E): 8.22mm
- Pin Length (C): 39.3mm
- Plate Height (H): 20.00mm
- Plate Thickness (T): 2.80mm
- Tensile Strength: 9,441 LBS
