Premium #50 Low Noise Roller Chain

Roller Chain > Roller Chain by Size > ANSI 50 Roller Chain 5/8 Pitch

Premium #50 Low Noise Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: 50SLN-LOW-NOISE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714644312431" , "metafield_value":""}]
Premium #50 Low Noise Roller Chain Features
Premium #50 Low Noise Roller Chain Specifications

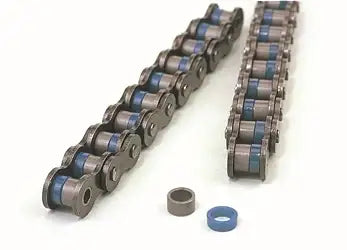

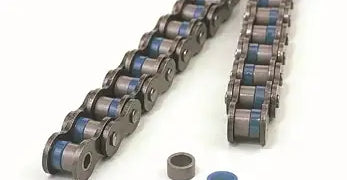

This #50 low noise roller chain is also commonly referred to as 50 silent roller chain, and fully meets all ANSI Standards. Low noise roller chains are in a growing state of demand due to the need for lower equipment noise. These chains are commonly found in printing, packing, engineering, and drive applications where a lower noise environment is needed. This roller chain achieves the low noise effect because of the two-piece roller construction of the chain, this greatly decreases the audible shock when the chain is engaging with the sprocket. #50 low noise roller chain produces a silencing effect as much as 10DB and is a high-performance premium quality roller chain. Something else that is notable about this chain is that it will run on standard #50 roller chain sprockets. For more information or to get a quote on super low noise roller chain please contact us and we will be happy to assist you!

Dimensions:
Premium #50 Low Noise Roller Chain
  • Chain #: 50SLN
  • Pitch (P): 0.625"
  • Roller Link Width (W): 0.375"
  • Roller Diameter (D1): 0.388"
  • Roller Diameter (D2): 0.409"
  • Pin Diameter (O): 0.200"
  • Pin Length (E): 0.799"
  • CL Pin Length (F): 0.862"
  • Plate Thickness (T): 0.079"
  • Plate Height (H): 0.591"
  • Tensile Strength: 6,930 LBS
  • Working Load Rating: 1,540 LBS
  • Weight Per Foot: 0.657 LBS



Premium #50 Low Noise Roller ChainSpring Style Rollers Also Available!

Premium #50 Low Noise Roller Chain


Noise Reduction Efficiency Chart:
Premium #50 Low Noise Roller Chain


Horse Power Rating Table:
Premium #50 Low Noise Roller Chain



Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
  • Chain #: 50SLN
  • Pitch (P): 0.625"
  • Roller Link Width (W): 0.375"
  • Roller Diameter (D1): 0.388"
  • Roller Diameter (D2): 0.409"
  • Pin Diameter (O): 0.200"
  • Pin Length (E): 0.799"
  • CL Pin Length (F): 0.862"
  • Plate Thickness (T): 0.079"
  • Plate Height (H): 0.591"
  • Tensile Strength: 6,930 LBS
  • Working Load Rating: 1,540 LBS
  • Weight Per Foot: 0.657 LBS
