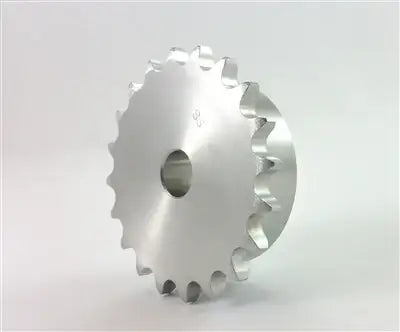

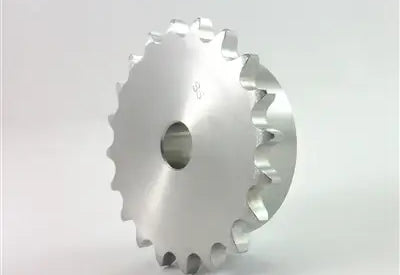

50B36SS Stainless Steel Sprocket

50B36SS Stainless Steel Sprocket

Note: Custom Cut to Length Chain Also Available
Product Code: 50B36SS-SPROCKET
Shipping calculated at checkout.
View full details
Description
Specification
This 50B36SS sprocket with a stock bore is manufactured with a high-grade anti-corrosive stainless steel and conforms to ANSI dimensional standards. Our 50B36 stainless steel sprocket can also be supplied with a specific bore and key-way size or as an A-Plate or C-Hub. It is manufactured to operate 50SS Stainless steel roller chain and interchanges with other brands. For more information or to get a quote please contact us and we will be happy to assist you.

50B36SS Sprocket Dimensions


  • Sprocket Size: 50B36SS
  • Tooth Count: 36
  • Outside Diameter: 7.519"
  • Type: B
  • Stock Bore: 3/4"
  • Recommended Maximum Bore: 2-1/4"
  • Hub Diameter: 3-1/4"
  • Length Thru Bore: 1-1/4"
  • Weight: 5.64 LBS


Feature

  • High-Quality Sprocket
  • Anti-Corrosive
  • Conforms to ANSI Standards
Featured image
  • Sprocket Size: 50B36SS
  • Tooth Count: 36
  • Outside Diameter: 7.519"
  • Type: B
  • Stock Bore: 3/4"
  • Recommended Maximum Bore: 2-1/4"
  • Hub Diameter: 3-1/4"
  • Length Thru Bore: 1-1/4"
  • Weight: 5.64 LBS
