Power Transmission > Sprocket & Pulley Bushings > Taper Lock Bushings > 5050 Taper Lock Bushings

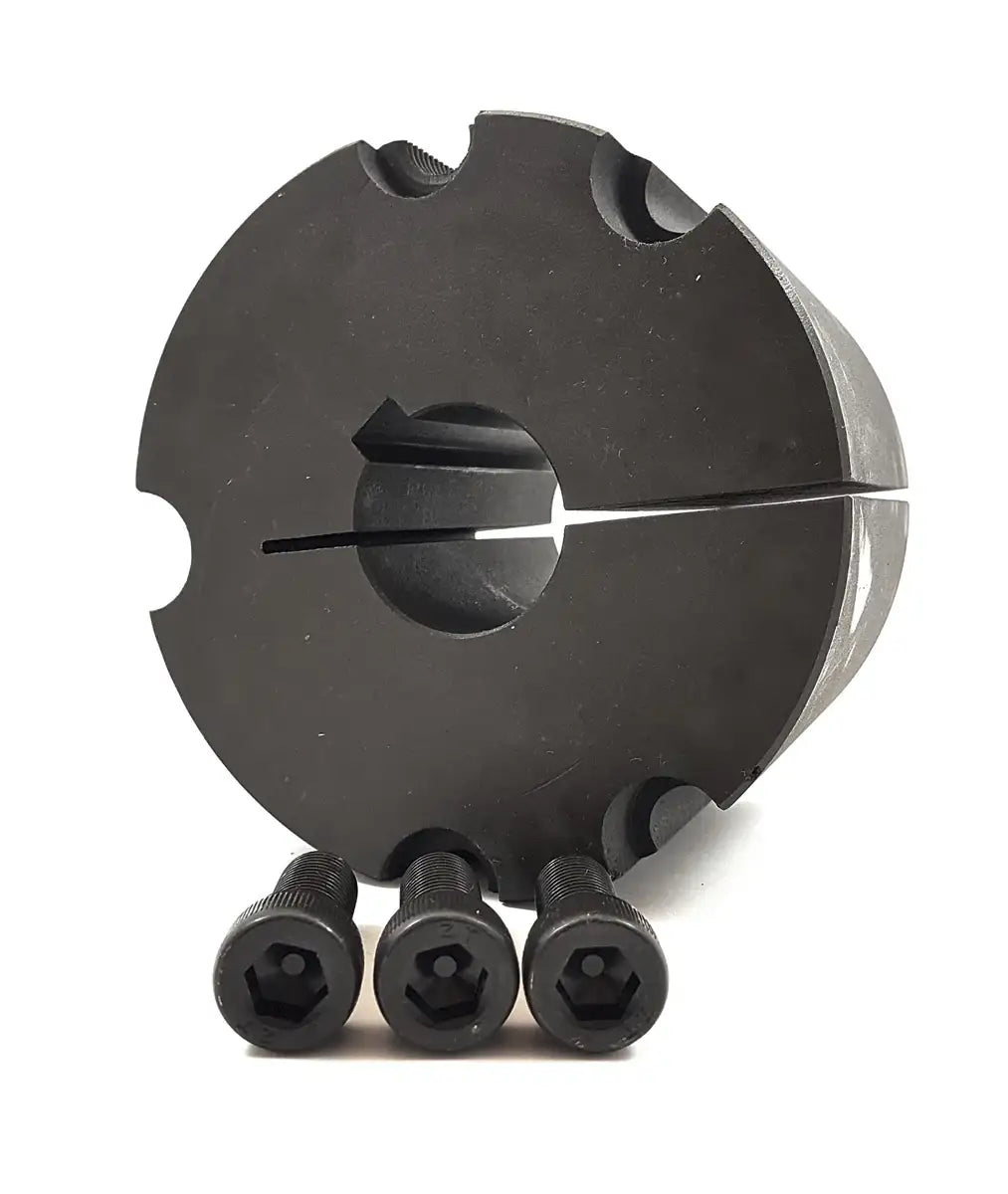

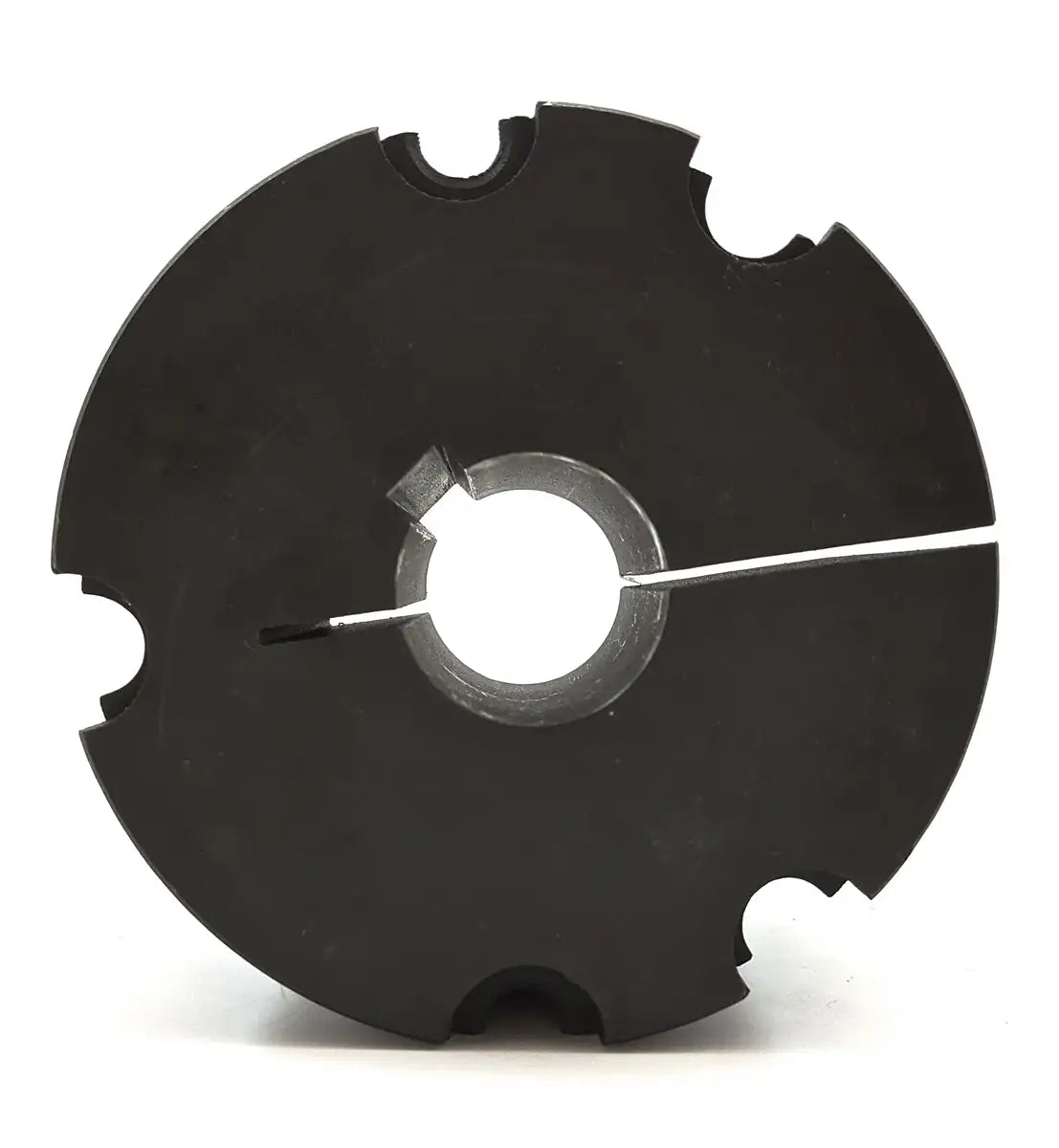

5050 Taper Lock Bushing X 2-5/16" Bore
Note:
Custom Cut to Length Chain Also Available
$419.99
SKU: 5050-2-516-TAPER-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
5050 Taper Lock Bushing X 2-5/16" Bore Features
5050 Taper Lock Bushing X 2-5/16" Bore Specifications
This 5050 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 5050 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 2-5/16" bore with a standard keyway, for more information on 5050 taper lock bushings please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
- Bushing Number: 5050
- Bore: 2-5/16"
- Dimension (A): 7"
- Dimension (B): 5"
- Dimension (D): 6.72"
- Number Of Set Screws: 3
- Threads: 7/8"
- Length: 2-1/4"
- Dimension (G): 37°
- Wrench Torque: 3,100 LBS
- Weight: 38 LBS
