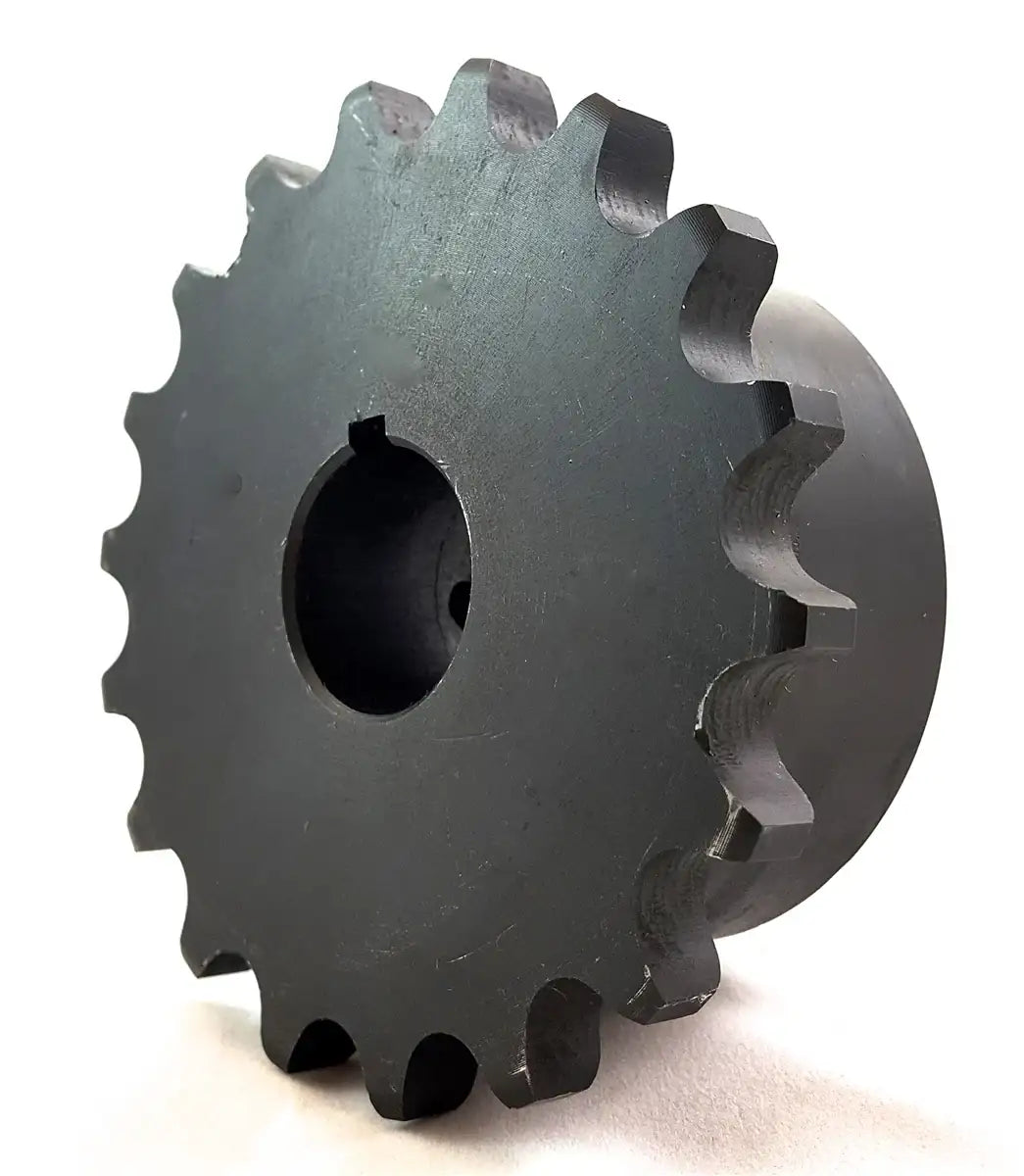

5018F Coupling Sprocket X 1-3/8" Finished Bore
Note:
Custom Cut to Length Chain Also Available
$34.99
SKU: 5018F-1-38-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
5018F Coupling Sprocket X 1-3/8" Finished Bore Features
5018F Coupling Sprocket X 1-3/8" Finished Bore Specifications
This 5018F coupling sprocket/ coupling half is manufactured using high-quality steel and features heat-treated hardened teeth for the maximum torque ability, performance, and durability. Additionally it meets all ANSI standards, has 18 teeth, and is supplied with a 1-3/8" bore with standard keyway and setscrews. For large quantities or more information on 5018 coupling sprockets please contact us and we will be happy to assist you!
Dimensions
- Sprocket #: 5018F
- Bore Size: 1-3/8"
- Tooth Count: 18
- Hub Diameter (A): 2.871"
- Recommended Maximum RPM: 3600
- Weight: 1.3 LBS
- Sprocket #: 5018F
- Bore Size: 1-3/8"
- Tooth Count: 18
- Hub Diameter (A): 2.871"
- Recommended Maximum RPM: 3600
- Weight: 1.3 LBS
