#50 TK Low Temperature Roller Chain Features
#50 TK Low Temperature Roller Chain Specifications

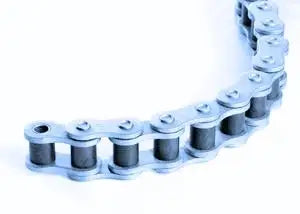

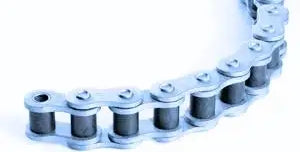

#50 TK Low Temperature Roller Chain is manufactured specifically for operating in places that is too cold for standard roller chains. This is achieved by applying a special low-temperature oil at the factory into all of the moving components of the chain giving it the ability to operate in applications as low as -40 degrees Fahrenheit. Something special about this chain is that it features solid bushings, solid rollers, and fully heat-treated precision components to create an ultra durable high-performance low temperature roller chain. Additionally, this chain fully meets all ANSI standards so it will run on standard #50 roller chain sprockets. To get a quote or for more information on low temperature roller chain please contact us and we will be happy to assist you!

Dimensions:
#50 TK Low Temperature Roller Chain
  • Chain #: 50 TK
  • Pitch (P): 0.625"
  • Roller Link Width (W): 0.375"
  • Roller Diameter (D): 0.400"
  • Pin Diameter (O): 0.200"
  • Pin Length (E): 0.799"
  • CL Pin Length (F): 0.862"
  • Plate Thickness (T): 0.079"
  • Plate Height (H): 0.591"
  • 176F - 14F Working Load Rating: 1,540 LBS
  • 12F - -22F Working Load Rating: 1,078 LBS
  • -24F - -40F Working Load Rating: 880 LBS
  • Weight Per Foot: 0.711 LBS
