Metric 5SPZ224 Sheave | Five-Groove 5-SPZ-224 Pulley

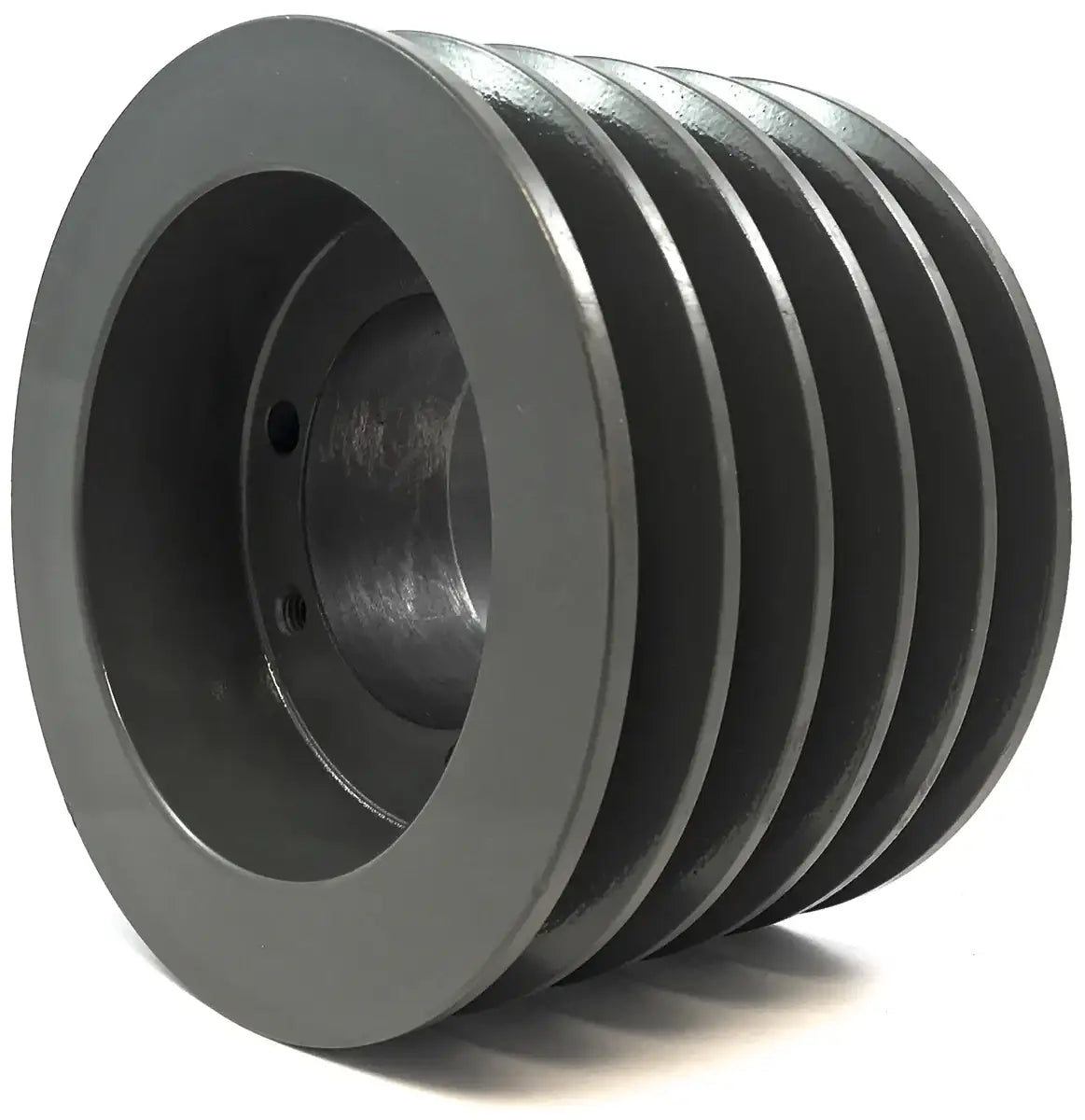

Our Metric 5SPZ224 Pulley is a five-groove metric v-belt sheave that is 228 millimeters (mm) in diameter and is designed for optimal performance, durability while being constructed from a high-strength DIN 1691 cast iron material for maximum working life. Additionally, this five groove 5-SPZ-224 Sheave is made for a 2517 taper lock bushing, meaning it has a wide range of bore sizes versus a fixed bore style. Utilizing a balance quality grade of ISO 1940 our sheave is sure to perform to your expectations efficiently and with minimal vibration versus other sheaves, which decreased vibration improves the life of the bearings and other components the machine. 5SPZ224 Pulleys are designed for 5-banded SPZ, SPZX, and XPZ metric belts. We also stock a complete line of shafting, electric motors, gear reducers, roller chain, and sprockets. For more information or to get a quote on our 5-SPZ-224 Sheave or other products please contact us and our customer service team will be happy to assist you.

5SPZ224 Pulley Dimensions

• Pulley Size: 5SPZ224
• Outside Diameter (OD): 228mm
• Pitch Diameter (PD): 224mm
• Pulley Type: 11
• Bushing Type: 2517
• Maximum Bore: 60mm
• Dimension (F): 64mm
• Dimension (G): 194mm
• Dimension (K): 10mm
• Dimension (L): 45mm
• Dimension (H): 118mm
• Weight: 6.6 kG
