EL958HSP K44 Attachment
SKU: 4947-EN-EL958HSP-K44
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
EL958HSP K44 Attachment Description/Features
EL958HSP K44 Attachment Specifications
EL958HSP K44 attachment is manufactured from high-strength steel alloys and is a full-length bucket elevator chain attachment for bucket elevating applications. It is typically supplied on the EL958HSP chain on every other pitch, but we can supply these attachments assembled within the chain in any configuration required for the application. For additional information or to get a quote on the EL958HSP K44 attachment chain for bucket elevator applications contact our customer support team and we will be happy to assist you.

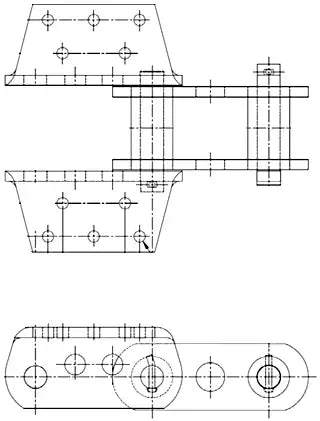

EL958HSP K44 Attachment
- Chain Size: EL958HSP
- Attachment Type: K44
- Attachment Hole Transverse Pitch (A): 7.00"
- Center of Pin To Attachment Hole (B): 1.25"
- Pitch Line to Top of Attachment (C): 2.50"
- Attachment Hole (D): 0.56"
- Attachment Hole Pitch (E): 3.50"
- Overall Attachment Width (F): 13.68"
- Attachment Hole Transverse Pitch (G): 12.00"
- Length of Attachment Plate (H): 5.75"
- Center of Pin to Attachment Hole (J): 1.25"
- Attachment Hole Pitch (K): 3.50"
- Plate Thickness (T): 0.50"
- Weight: 40 LBS/ Ft
