6956PB Bucket Elevator Chain | Elevator Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 4947-EN-6956PB-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
6956PB Bucket Elevator Chain | Elevator Chain Features
6956PB Bucket Elevator Chain | Elevator Chain Specifications
6956PB bucket elevator chain is designed with full-length K-type attachments and is apart of the 6000-series bucket elevator chains. It is manufactured from high-strength steel alloys and is available with sealed joints as well as with components that are specially coated for certain applications. 6956PB bucket elevator chains are found in elevators all around the world and have been one of the bucket elevating chain industries standard for a chain for a number of years. For additional information or to get get a quote on the 6956PB chain contact our customer service team and we will be happy to assist you!

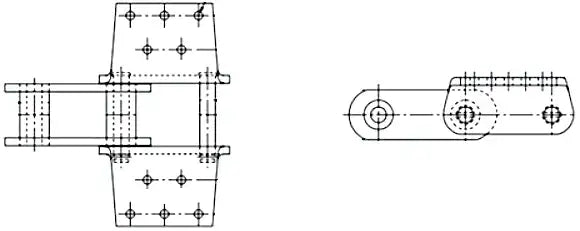

6956PB Chain Dimensions
- Chain Size: 6956PB
- Pitch (A): 6.00"
- Inside Width (B): 3.000"
- Roller Diameter (C): 1.750"
- Sidebar Width (D): 3.000"
- Sidebar Thickness (E/F): 0.500"
- Pin Diameter (G): 1.000"
- Tensile Strength: 144,500 LBS
- Max. Recommended Working Load: 16,000 LBS
- Chain Size: 6956PB
- Pitch (A): 6.00"
- Inside Width (B): 3.000"
- Roller Diameter (C): 1.750"
- Sidebar Width (D): 3.000"
- Sidebar Thickness (E/F): 0.500"
- Pin Diameter (G): 1.000"
- Tensile Strength: 144,500 LBS
- Max. Recommended Working Load: 16,000 LBS
