Premium Metric 48B-3 Roller Chain

Name: Premium Metric 48B-3 Roller Chain
Brand: USA ROLLER CHAIN
SKU: 48B-3-ROLLER-CHAIN
Availability: InStock

SKU: 48B-3-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

Premium Metric 48B-3 Roller Chain Description/Features

Premium Metric 48B-3 Roller Chain Specifications

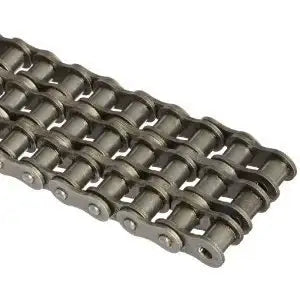

48B-3 roller chain conforms to all ISO standards and is a good quality, durable roller chain. This 48B-3 roller chain features heat-treated components, carbon steel construction, and solid rollers. The heat-treated components of the chain help ensure strength and durability while the solid rollers and ISO standard construction of the chain provide a good performance and extended working life. 48B-3 roller chain is commonly supplied as 10ft boxes including one connecting link each, however we can supply this chain in longer lengths or cut to length strands. Additionally, we offer a full line of 48B-3 sprockets and attachments.

Dimensions:

Part Number: 48B-2
Pitch (P): 3.000"
Transverse Pitch (K): 3.599"
Roller Link Width (W): 1.800"
Roller Diameter (R): 1.900"
Pin Diameter (D): 1.151"
Overall Width (F): 11.394"
Plate Height (H): 2.512"
