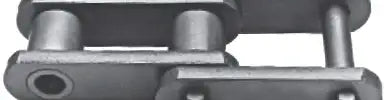

4864 Chain

Specialty Chain > Engineering Class Chains > Steel Bushed Chains > 4864 Steel Bushed Chain

4864 Chain

Note: Custom Cut to Length Chain Also Available
SKU: 4864-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714594013551" , "metafield_value":""}]
4864 Chain Features
4864 Chain Specifications

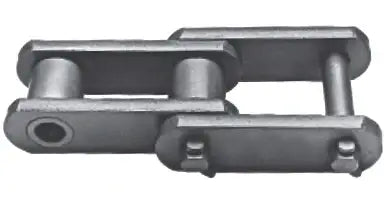

This 4864 chain is a high quality, high strength steel bushed chain that is extremely durable. 4864 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 4864 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
4864 Chain
  • Chain Size: 4864
  • Pitch: 7.00"
  • Overall Width (A): 7.38"
  • Dimension (B): 3.81"
  • Dimension (C): 3.56"
  • Inside Width (E): 3.75"
  • Bushing Diameter (D): 2.38"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.25"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 4.00"
  • Sidebar Thickness (T): 0.63"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 275,000 LBS
  • Maximum Working Load: 21,800 LBS
  • Weight Per Foot: 31.0 LBS
