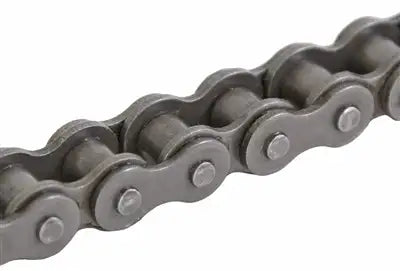

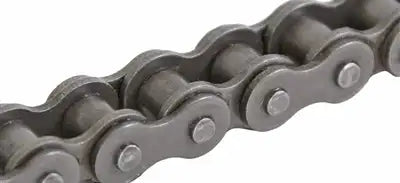

423 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
** CURRENTLY UNAVAILABLE. PLEASE CONTACT US FOR ADDITIONAL OPTIONS **
423 roller chain is a non-standard series roller chain that is a common in stock item for USA Roller Chain. What sets this chain apart from others is that it is manufactured with solid rollers, and uses heat-treated components for better performance and a higher strength. This 423 roller chain also is supplied with a high-quality lubricant for additional working life. We stock this chain in 10ft boxes, 50ft reels, 100ft reels, 250ft reels, and cut to length strands upon request. Besides 423 roller chain, we also have a full line of sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get a formal quote please contact us and one of our customer service representatives will be happy to assist you.
Chain Size: 423 Pitch (P): 0.500" Roller Width (W): 0.250" Roller Diameter (D): 0.335" Overall Chain Width: 0.570" Overall Connecting Link Width (F): 0.613" Link Plate Height (H): 0.456" Link Plate Thickness (T): 0.058" Pin Diameter (E): 0.175" Average Ultimate Strength: 4,080 LBS Weight Per Ft: 0.40 LBS
