Premium 40 Stainless Steel Hollow Pin Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

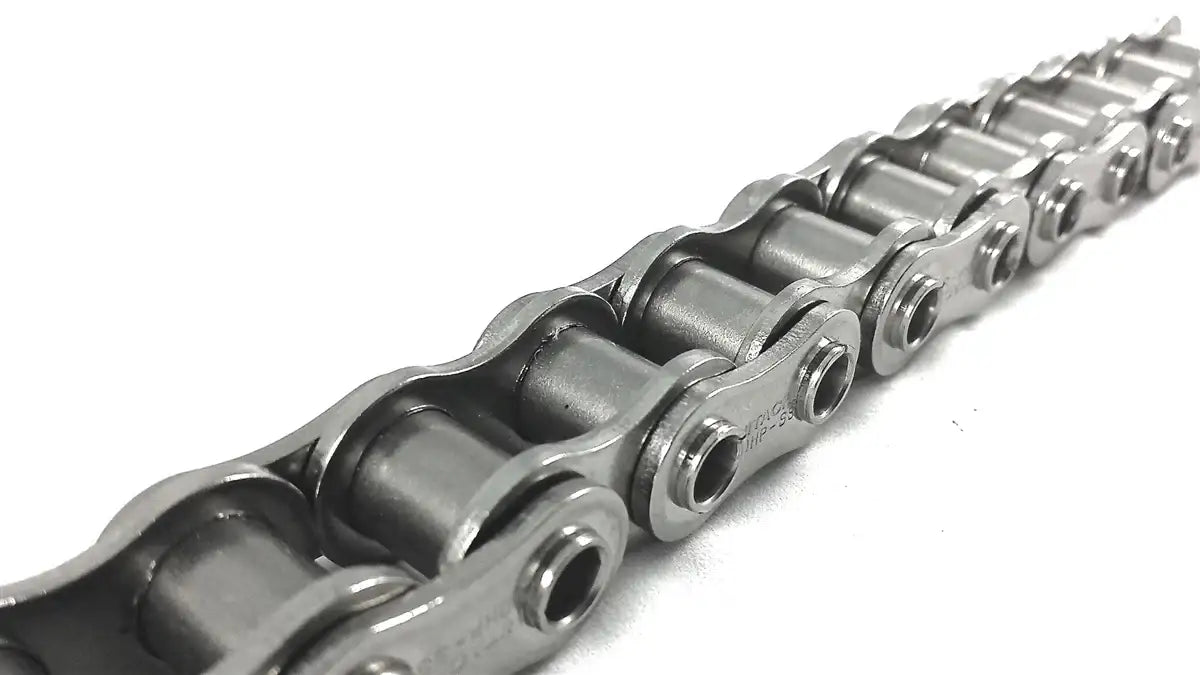

40 stainless steel hollow pin chain is a highly versatile corrosion and abrasion-resistant 1/2" pitch ANSI chain made from 304-grade stainless steel. Our premium 40HPSS stainless chain is an excellent choice for food-grade packaging, conveying, scientific, and other applications. 40 stainless steel hollow pin roller chain is one of the most versatile power transmission chains on the market; this is due to the hollow pin design allowing for items to be affixed to the chain or through it with the 304SS material construction will enable it to operate where standard carbon steel chains couldn't. What truly separates our 40 stainless hollow pin chain from others is the superior precision tolerances of each component, factory pre-loading, and quality of 304SS used. The combination created a 40SSHP chain with an extended operating life, performance, and overall functionality. For more information or a quote on our 40 stainless steel hollow pin chain, contact our customer support team, and we will gladly assist you!
40SS Hollow Pin Chain Dimensions
- Chain Size: 40SSHP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Weight: 0.4 LBS/ FT
- Chain Size: 40SSHP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Weight: 0.4 LBS/ FT
