ANSI 40 Hollow Pin Chain - 10ft Box
$89.99
SKU: 40HP-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
ANSI 40 Hollow Pin Chain - 10ft Box Description/Features
ANSI 40 Hollow Pin Chain - 10ft Box Specifications

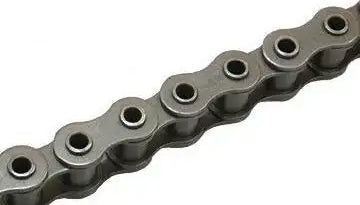

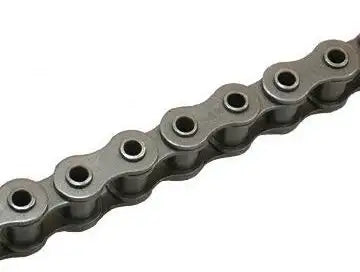

ANSI 40 hollow pin chain is a unique 1/2" pitch roller chain with a cylindrical open-bearing surface area where the pin would typically be, allowing for pins or other articles to be affixed through the roller chain. Our 40 hollow pin roller chain conforms to ANSI B29.1 dimensional standards for direct interchangeability with different brands and proper sprocket contact. What sets our 40HP hollow pin chain apart from others is the use of high-precision components that have all been heat-treated and shot-peened for improved strength and fatigue resistance. We also pre-load our 40 hollow-pin roller chains for perfect hollow-pin alignment and to decrease significantly or eliminate chain elongation over time. 40 hollow pin chains are used for conveyors, packaging equipment, and more. For additional information or to get a quote, contact our customer service team, and we will gladly assist you!
40 Hollow Pin Chain Dimensions
- Chain Size: 40HP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Minimum Tensile Strength: 2,500 LBS
- Average Tensile Strength: 2,743 LBS
- Max. Working load: 319 LBS
- Weight: 0.4 LBS/ FT
- Chain Size: 40HP
- Pitch (P): 0.500"
- Roller diameter (R): 0.312"
- Width Between Inner Plates (O): 0.312"
- Hollow Pin OD (L): 0.222"
- Hollow Pin ID (I): 0.157"
- Overall Chain Width (V): 0.65"
- Overall Connecting Link width (X): 0.69"
- Plate Height (H): 0.47"
- Plate Thickness (T): 0.060"
- Minimum Tensile Strength: 2,500 LBS
- Average Tensile Strength: 2,743 LBS
- Max. Working load: 319 LBS
- Weight: 0.4 LBS/ FT
