40BS59 Sprocket 1-1/4" Bore - #40 Roller Chain ANSI
Note:
Custom Cut to Length Chain Also Available
$83.99
SKU: 40BS59-1-14-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40BS59 Sprocket 1-1/4" Bore - #40 Roller Chain ANSI Features
40BS59 Sprocket 1-1/4" Bore - #40 Roller Chain ANSI Specifications

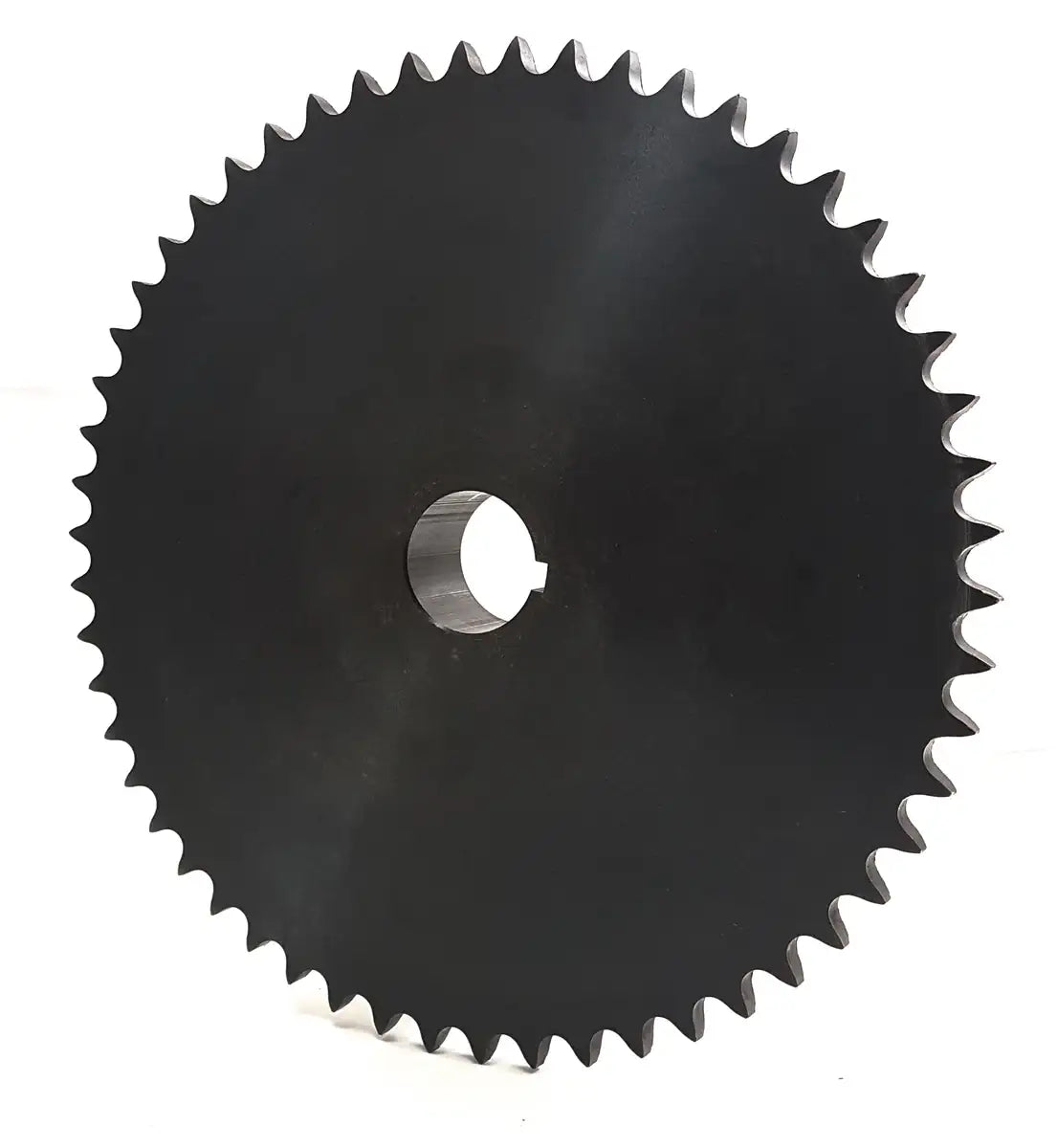

This 40BS59 sprocket features a 1-1/4" finished bore including a key-way and two setscrews. It is a durable, high quality, and precision sprocket that fully meets all ANSI Standards which insures proper contact between the #40 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of #40 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 40BS59
- Outside Diameter: 9.680"
- Hub Type: B
- Bore Size: 1-1/4"
- Keyway Size: 1/4" X 1/8"
- Hub Diameter: 3-1/2"
- Length Through Bore: 1-1/8"
- Weight: 7.45 LBS
- Common Interchanges: 40BS59H, H40BS59, 40BS59-FB
Email:
- Sprocket Size: 40BS59
- Outside Diameter: 9.680"
- Hub Type: B
- Bore Size: 1-1/4"
- Keyway Size: 1/4" X 1/8"
- Hub Diameter: 3-1/2"
- Length Through Bore: 1-1/8"
- Weight: 7.45 LBS
- Common Interchanges: 40BS59H, H40BS59, 40BS59-FB
