40BS20 Sprocket With 5/8" Finished Bore
Note:
Custom Cut to Length Chain Also Available
$22.99
SKU: 40BS20-58-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40BS20 Sprocket With 5/8" Finished Bore Features
40BS20 Sprocket With 5/8" Finished Bore Specifications

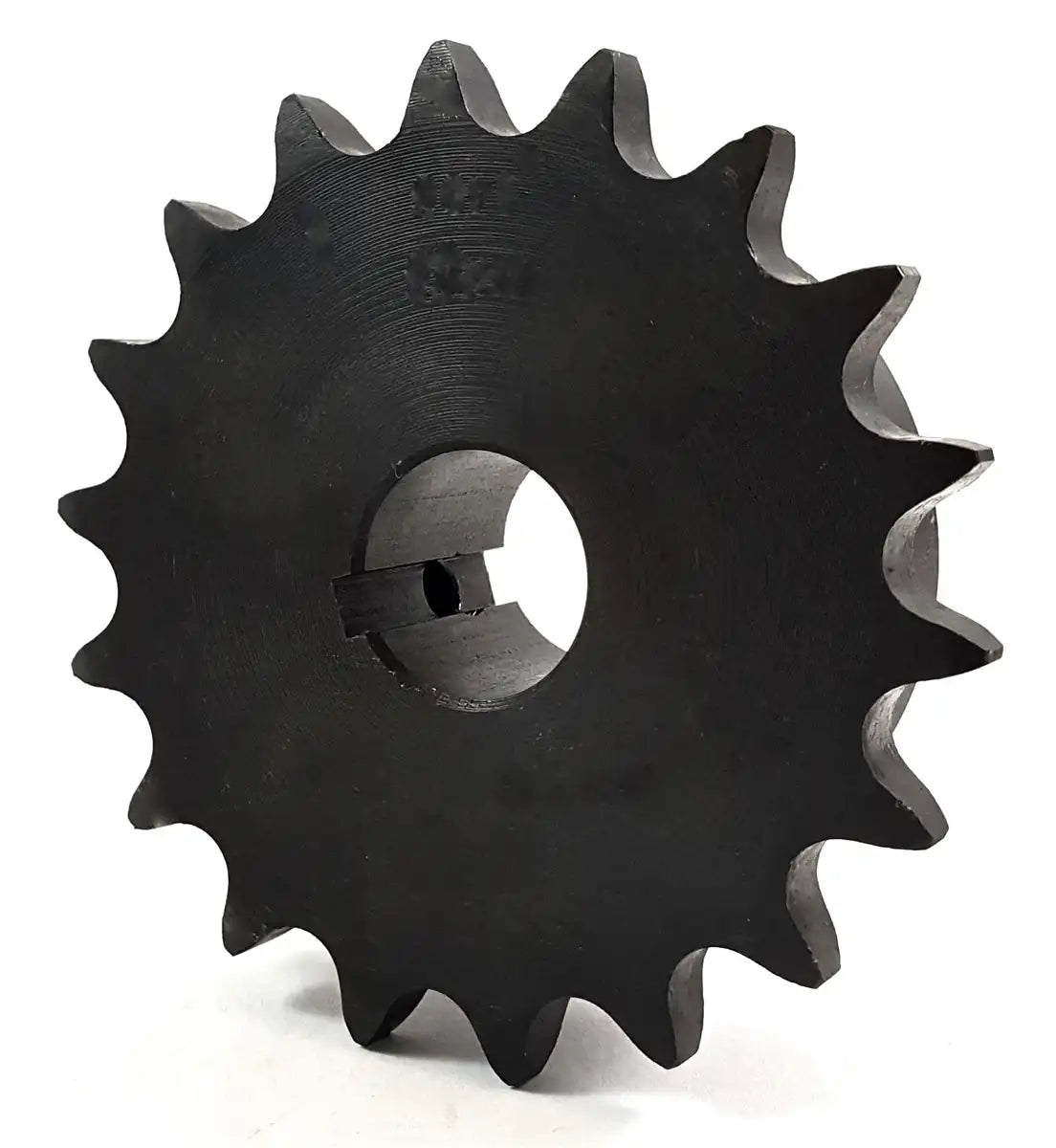

This 40BS20 sprocket featured a 5/8" finished bore with a key-way and two set screws. It is a durable, high quality, and precision sprocket with hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of #40 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
40BS20 5/8" Finished Bore Sprocket Dimensions:
- Sprocket Size: 40BS20
- Outside Diameter: 3.460"
- Hub Type: B
- Bore Size: 5/8"
- Keyway Size: 3/16" X 3/32"
- Hub Diameter: 2-5/8"
- Length Through Bore: 1"
- Weight: 1.56 LBS
- Common Interchanges: 40BS20H, H40BS20, 40BS20-FB
Email:
- Sprocket Size: 40BS20
- Outside Diameter: 3.460"
- Hub Type: B
- Bore Size: 5/8"
- Keyway Size: 3/16" X 3/32"
- Hub Diameter: 2-5/8"
- Length Through Bore: 1"
- Weight: 1.56 LBS
- Common Interchanges: 40BS20H, H40BS20, 40BS20-FB
