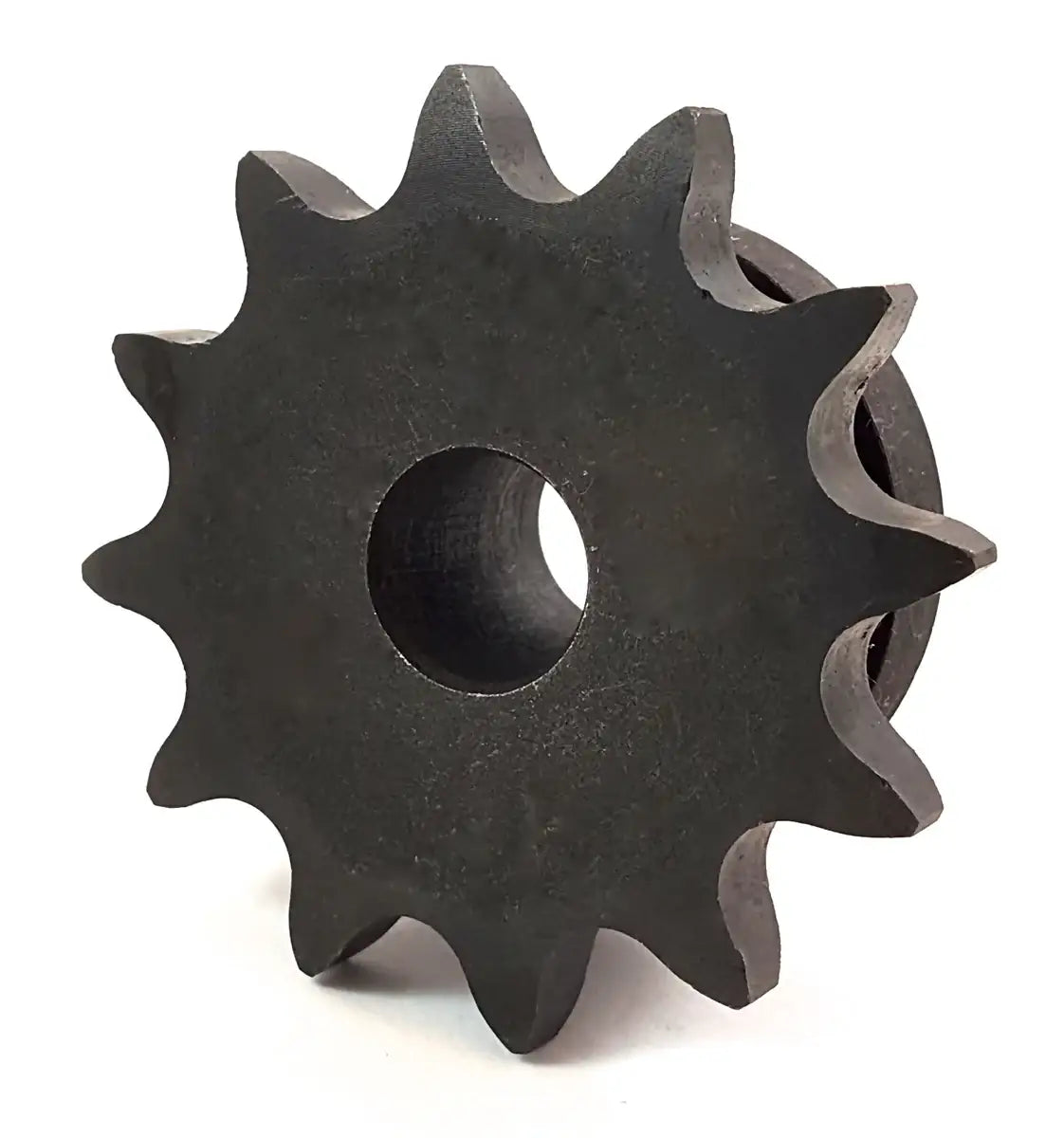

40B14 Sprocket With Stock Bore
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
When you need reasonable prices on conveyor parts, USA Roller Chain & Sprockets has your needs covered with 40B14 sprockets. Every sprocket comes with hardened teeth, precision machining and customizing options. With enough lead time, we can offer you bored-to-size sprockets of the same quality materials as the standard sizes. You're always welcome to stock up on these standard 1/2-inch ID hole parts too. They're easy to install, with no set screws or keyways to hinder your progress.
No durable sprocket leaves our facility without a complete inspection. Expect a black-oxide coating on your 40B14 sprocket so that rust buildup isn't an issue on the job. Because the sprocket meets all of the ANSI Standards, it will latch onto #40 roller chain with ease. Rely on sprockets from USA Roller Chain - breakage and wear are a rare occurrence. Keep your system running like clockwork with either standard- or custom-sized sprockets from our vast inventory.
40B14 Sprocket Dimensions:
- Sprocket Size: 40B14
- Outside Diameter: 2.490"
- Hub Type: B
- Stock Bore: 1/2"
- Recommended Max Bore: "
- Hub Diameter: 1-11/16"
- Length Through Bore: 7/8"
- Weight: 0.59 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Sprocket Size: 40B14
- Outside Diameter: 2.490"
- Hub Type: B
- Stock Bore: 1/2"
- Recommended Max Bore: "
- Hub Diameter: 1-11/16"
- Length Through Bore: 7/8"
- Weight: 0.59 LBS
