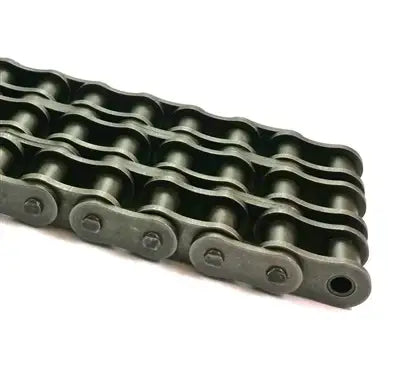

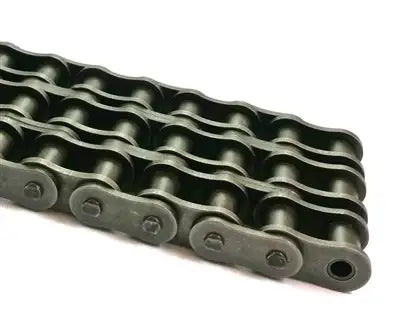

40A-3 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: 40A-3-CHAIN-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40A-3 Roller Chain - 10ft Box Features
40A-3 Roller Chain - 10ft Box Specifications
This 40A-3 triplex roller chain is manufactured dimensionally to ANSI B29.1 and ISO standards, so it directly interchanges with other ANSI, DIN, and ISO certified chains. Though dimensionally equivalent this chain exceeds in strength, performance, and durability. Additionally, this 40A-3 roller chain is manufactured using heat-treated precision components, features a solid roller design for increased performance, and is supplied with a high-quality lubricant applied to the chain from the factory. For additional information or if you need assistance, please contact us, and we will be happy to assist you.
40A-3 Roller Chain Dimensions
- ISO Chain #: 40A-3
- ANSI Equivalent #: 200-3
- Pitch (P): 63.500mm
- Roller Diameter (D): 39.68mm
- Width Between Inner Plates (W): 37.85mm
- Pin Diameter (E): 19.85mm
- Pin Length (L): 223.5mm
- Connecting Link Pin Length (A): 230.4mm
- Inner Plate Height (H): 60.00mm
- Plate Thickness (T): 8.00mm
- Transversal Pitch (V): 71.55mm
- Average Tensile Strength: 1217.8 kN
- Weight Per Meter: 49.03 KG
- ISO Chain #: 40A-3
- ANSI Equicvelnt #: 200-3
- Pitch (P): 63.500mm
- Roller Diameter (D): 39.68mm
- Width Between Inner Plates (W): 37.85mm
- Pin Diameter (E): 19.85mm
- Pin Length (L): 223.5mm
- Connecting Link Pin Length (A): 230.4mm
- Inner Plate Height (H): 60.00mm
- Plate Thickness (T): 8.00mm
- Transversal Pitch (V): 71.55mm
- Average Tensile Strength: 1217.8 kN
- Weight Per Meter: 49.03 KG
