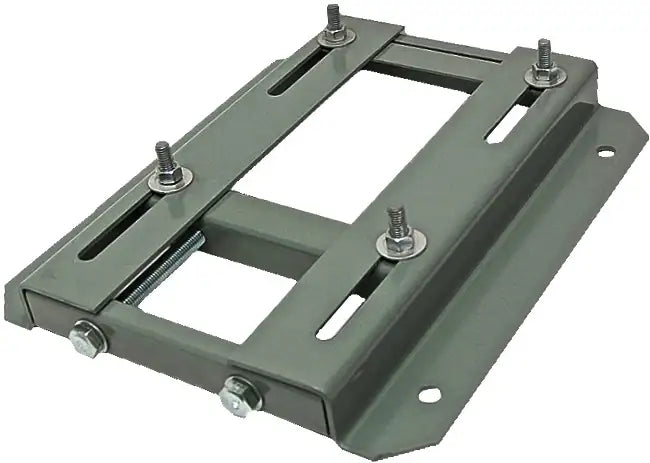

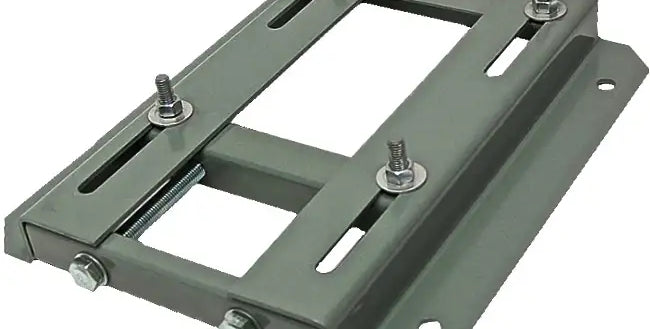

Adjustable 405T Frame Motor Base | NEMA 405T Motor Base

Sliding 405T frame motor base is a high-quality adjustable electric motor base that is manufactured for NEMA 405T frame motors. The sliding-base design is among the most popular motor base designs due to its ease in adjustment and relatively inexpensive price point compared to other styles. Our adjustable NEMA 405T motor base is manufactured utilizing premium-quality steel for long term performance even in rugged applications, is supplied with an oven-baked primer for easier application of preferred paint, and includes washers required for install. These bases are also a direct drop-in replacement for all major brands/ makes of this style base. We also supply a full line of premium electric motors, gear reducers, pulleys, v-belts, roller chains, and sprockets. For more information or to get a quote on a sliding 405T frame motor base please contact us and we will be happy to assist you!

Sliding 405T Frame Motor Base Dimensions

• Frame Size: 405T
• Dimension (A): 28-3/4"
• Dimension (B): 23-7/8"
• Dimension (C): 3"
• Dimension (D): 18"
• Dimension (E): 8"
• Dimension (F): 6-7/8"
• Dimension (G): 10"
• Dimension (H): 10-5/8"
• Dimension (I): 7/8"
• Dimension (J): 7"
• Dimension (K): 5.8mm
• Dimension (L): 2-1/2"
• Dimension (M): 3/4 X 3
• Dimension (N): 3/4 X 11
• Dimension (W): 10-1/4"
